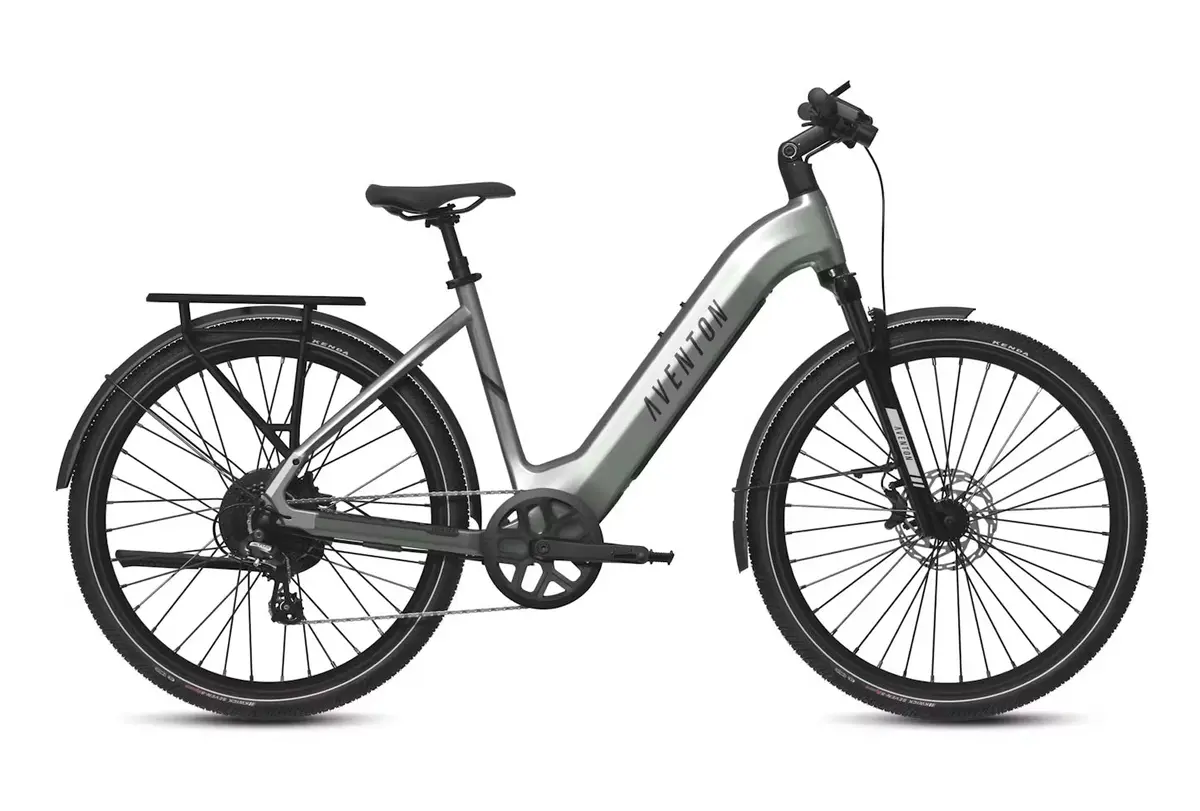

Aventon Level 3 Step-Through Electric Bike

Description

TOP SPEED20MPH
(Adjustable to 28MPH)RANGEUp to 70 MilesPAYLOAD CAPACITY300 lbsMOTOR POWER500W
(864W Peak)Wireless connection4G^†/GPS^†increased safetyTheft Deterrence^†

,800+ Bike Shops

Convenient, professional service

UL Safety Certified

Certified in accordance with UL 2849 / UL 2271

Regular 4’11 – 5’7

Large 5’7 – 6’1

ModelLevel 3 Step-Through EbikeWeight67lbsTotal Weight Limit300 lbsBox Size61″x13″x34″Rider Height4’11” – 6’1″Ebike ClassClass 2 EbikeRangeUp to 70 MilesBattery Safety CertificationsCertified to UL 2271Safety CertificationsUL Safety Certified
UL 2849Ideal UseCommutingPedal Assist3 Levels (with Ride Tune Customization)Water ResistanceBike – IPX5 // Components – IPX6FramesetFrame6061 Aluminum, Gravity Cast Front TriangleForkAventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offsetRear Spacing142mmFork Spacing110mmFrame StyleStep-ThroughWheelsetFront Wheel27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, blackRear Wheel27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, blackTiresKenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20Ebike SystemMotor36V, 500W (sustained), 864W (peak)Motor Torque60NmDisplayAventon BC280BatteryRemovable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cellsBattery Weight8.7lbsController36V, 24AThrottleAventon LH Handlebar MountedSensorsDouble Sided Bottom Bracket Torque SensorCharger36V Output: 42V/ 4ACharging time from 0% to 100%5 hoursLightsFront and rear lights integratedSpeedClass 2BrakesFront BrakeMagura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wireRear BrakeMagura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wireFront Brake RotorMagura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt RotorRear Brake RotorMagura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt RotorDrivetrainRear DerailleurShimano Altus RD-M310ShifterShimano 8 Speed Trigger SL-M315-8RChain7/8 speed 120LCassette12-32T / 8 Speed Shimano CS HG200-8Chainring48TCrankset3pc, 170mm crank armBottom BracketSquare Taper, Sealed, double sided Torque Sensor 83mmx158.5mmPedals9/16″ Composite PlatformCockpitSaddleAventon SaddleSeatpost30.9mm Aventon Suspension Seatpost with 50mm travelSeatpost Clamp34.9mmHandlebarsAluminum 31.8mm, 680mmGripsAventon Lock on gripsHeadsetSealed Bearing HeadsetIncluded AccessoriesRear Rack Weight Limit60lbs

Technical Overview

The Level 3 comes out of the box as a Class 2 ebike, with pedal assist and throttle. It can be unlocked to a Class 3 ebike. The Level 3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited or only Class 1 bikes are permitted. Aventon ebikes are built to the IPX5-rated standard. An IPX5 rating means the bike is protected against low-pressure water jets from any direction. This provides a moderate level of water resistance, allowing you to ride in light to moderate rain or through small puddles. However, IPX5 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or high-pressure sprayer to clean your ebike, as pressurized water can still damage components. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb.
