Description

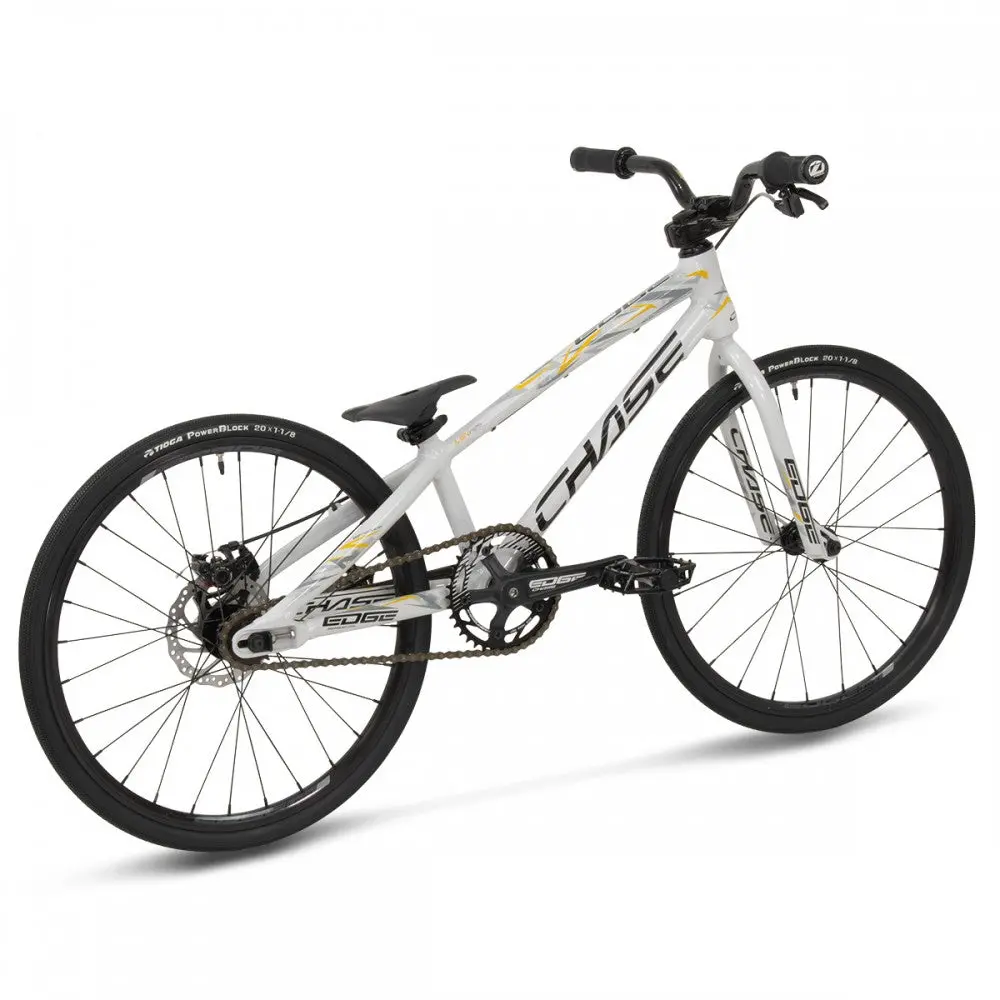

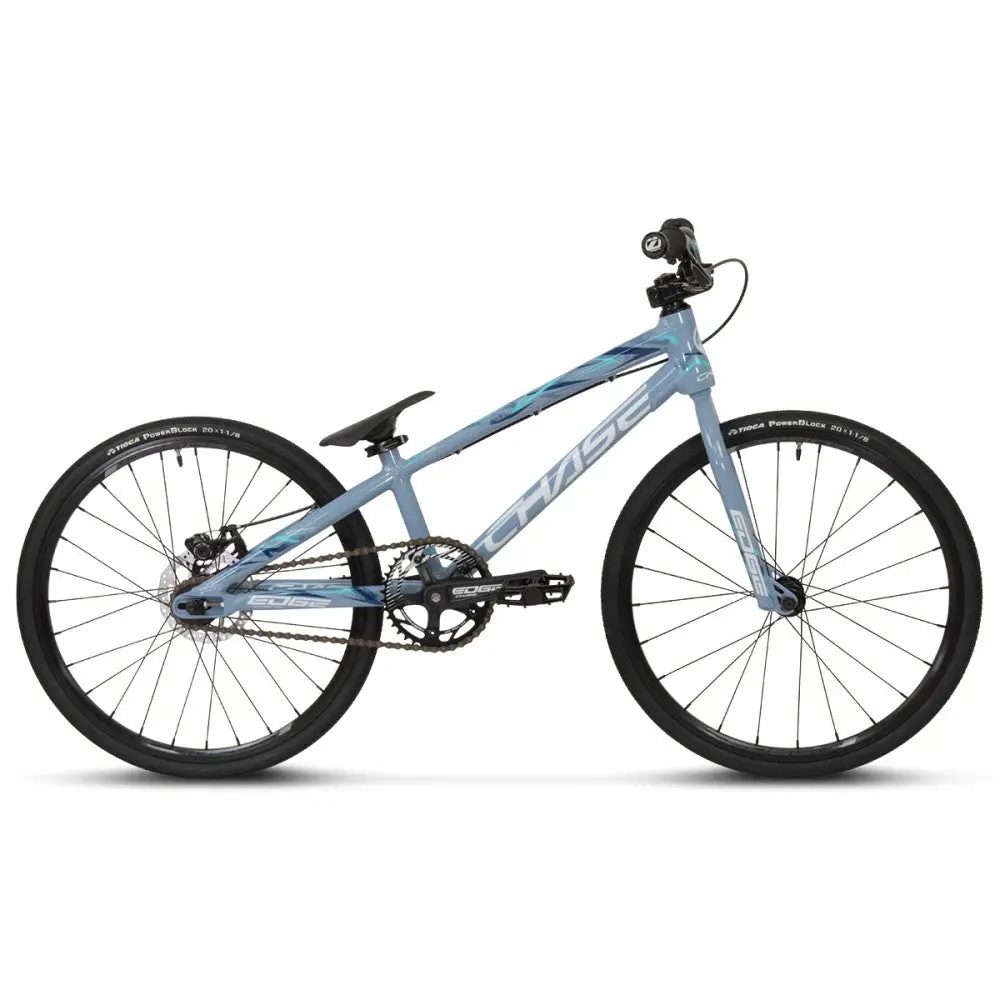

The CHASE Edge is a pure BMX racing machine, ideal for improving and taking it to the next level after starting the BMX Race. Now equipped with a disc braking system and closed rear dropout system, it has a hydroformed triple butted 6061 aluminum frame with integrated headset, a chromoly fork and handlebars, a crankset with INSIGHT chainring, double wall rims with cassette rear hub and TIOGA Powerblock tires. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes on the market today.
FEATURES:
- Aluminum 6061-T6 Triple butted frame 17.25″TT
- Integrated headtube 1″ and enclosed rear dropouts
- 100% Chromoly fork and handlebar
- Mechanical disc braking
- Chase Edge Alloy Stem 40mm Top Load
- Chase Edge 3 Piece Crank 140mm, Chromo Chainring bolts
- Euro ISIS bottom bracket
- 38T Insight Chainring 5 points BCD 110mm
- Mini 24H Front, 28H Rear alloy hubs, sealed bearings
- Rear ISO bracket cassette hub 16T cogs
- Chase Double Wall Alloy rims 20×1-1/8″
- Insight Mini Pivotal Seat
- TIOGA PowerBlock tires Wire Bead
- KMC Z1 chain
- RECOMMENDED SIZE: 1m10 – 1m25
- WEIGHT: 7.59Kg without pedal
GEOMETRY
- Frame Size: Mini
- TT: 17.25″ / 438.15 mm
- CS min: 12.25″ / 312 mm
- LR: 1.8″ / 46 mm
- AF: 72°
- SA: 70°
- HT: 4.33″ / 110 mm
- SPL: 8.8″ / 225 mm
- BBH: 10.6″ / 269.2 mm
- Wheels: 20×1-1/8″
