Description

THE RC STADIUM TRUCK REDEFINED

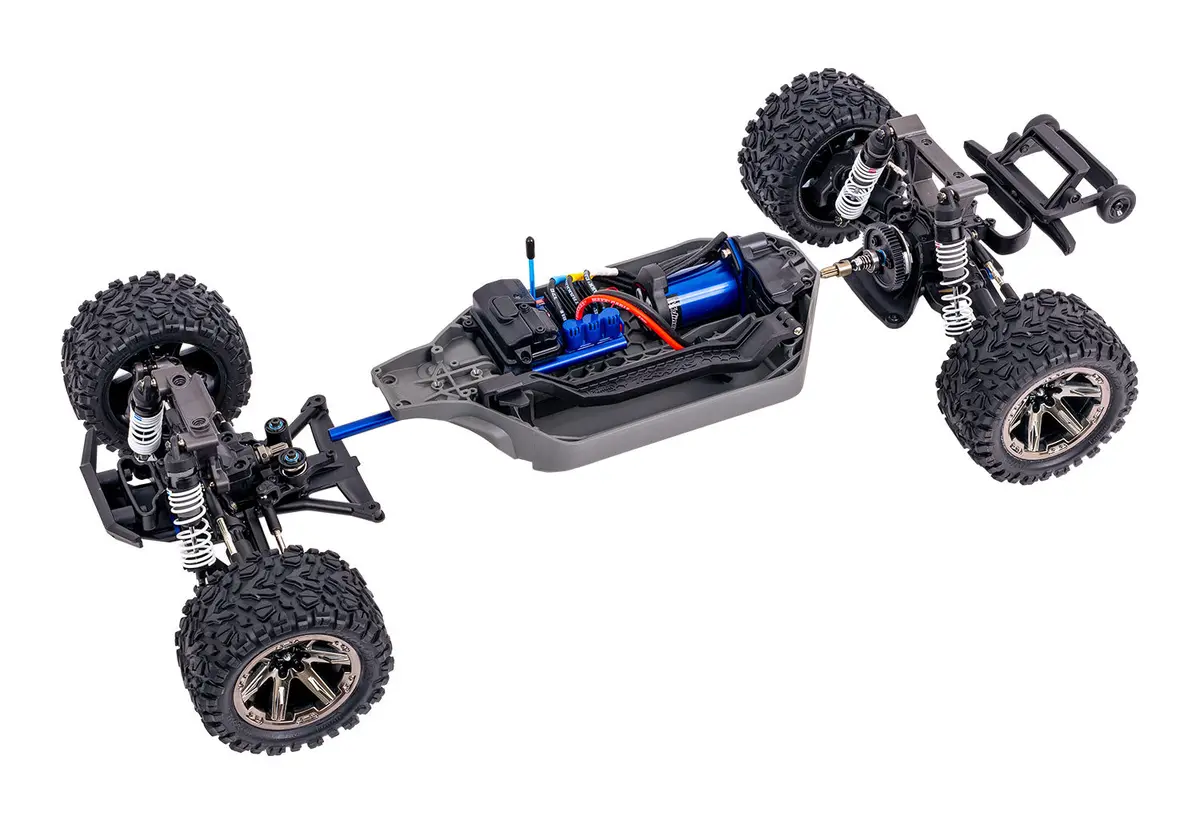

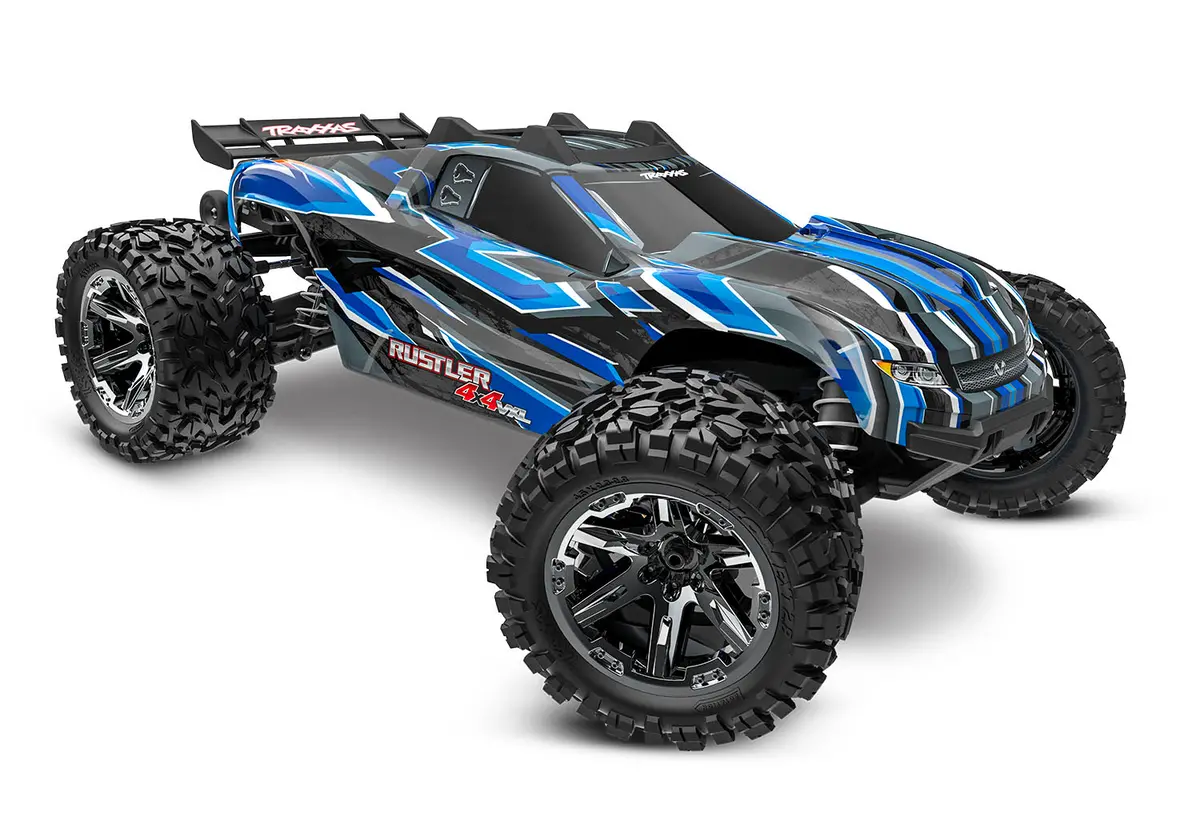

Rustler^® 4X4 VXL is a hard-charging wheelie machine that captures the speed and style of a stadium truck and injects it with a massive dose of strength and power. Beneath Rustler’s clipless body, the extreme Velineon^® brushless power system feeds power through the factory-installed Extreme Heavy Duty Upgrade Kit to become the new standard for strength and durability.

EXTREME HD UPGRADE KIT

Rustler 4X4 VXL’s factory-installed Extreme Heavy Duty Upgrade Kit replaces key drivetrain and suspension components with beefed-up parts made for ultimate strength and durability. From the HD suspension arms to the steel wheel hubs, this is the strongest driveline ever offered in a Rustler.

SELF-RIGHTING

Rustler 4X4 VXL uses Traxxas’ patented self-righting feature to keep the fun going, even when you get carried away with the wheelies or land that big trick upside down. Simply press a button on the TQi^™ transmitter and, in most circumstances*, Rustler 4X4 VXL will be back on its wheels in just seconds and ready for more action!

*3s power recommended for optimal performance

CLIPLESS BODY MOUNTING

Rustler 4X4 VXL uses a clipless body latching system for secure mounting and fast, one-handed removal and installation. The sleek, aerodynamic body features a rugged internal structure and external rollover protection for long life and Traxxas-Tough^™ durability.

Length:	18.78 inches (477 mm)
Width:	12.94 inches (329 mm)
Ground Clearance:	1.1 inches (27 mm)
Weight:	5.12 pounds (2.32 kg)
Height:	6.35 inches (161 mm)
Wheelbase:	11.62 inches (295 mm)
Front Shock Length:	Long
Rear Shock Length:	XX-long
Tires (pre-glued):	4.5″ x 2.3″ (114 mm x 58 mm) Talon™ EXT
Wheels:	2.8 inches (71 mm) black chrome
Speed Control:	VXL-3s™
Motor (electric):	Velineon® 3500 brushless

Transmission:	Single speed
Overall Drive Ratio:	13.97:1
Differentials:	Sealed, 2-gear
Chassis Structure / Material:	Composite tub
Brake Type:	Electronic
Drive System:	Shaft driven 4WD
Steering:	Bellcrank with integrated servo saver
Radio System:	TQi™ 2.4 GHz 2-ch transmitter with 6533 TSM receiver
Servo:	Waterproof 2075
Top Speed (optional gearing):	65+ mph with 3-cell LiPo and 20/54 gearing
Skill Level:	1
Battery Compartment:	162 mm x 50 mm x 25 mm

Type:	Velineon 3500 kV sensorless brushless
Weight:	9.24 ounces (262 g)
Length:	2.20 inches (56 mm)
Diameter:	1.41 inches (36 mm)
Connector Type:	3.5 mm bullet

Input Voltage (cells):	7.2 – 11.1 V (6–9 cells NiMH), 2s–3s LiPo
Case Size:	2.19″ (56 mm) x 1.54″ (39 mm) x 1.3″ (33 mm)
Weight:	3.84 ounces (109 g)
BEC Voltage:	6.0 volts
Reverse Delay:	Yes, with lockout
Thermal Protection:	Two-stage thermal shutdown
Ports:	Auxiliary fan
