Description

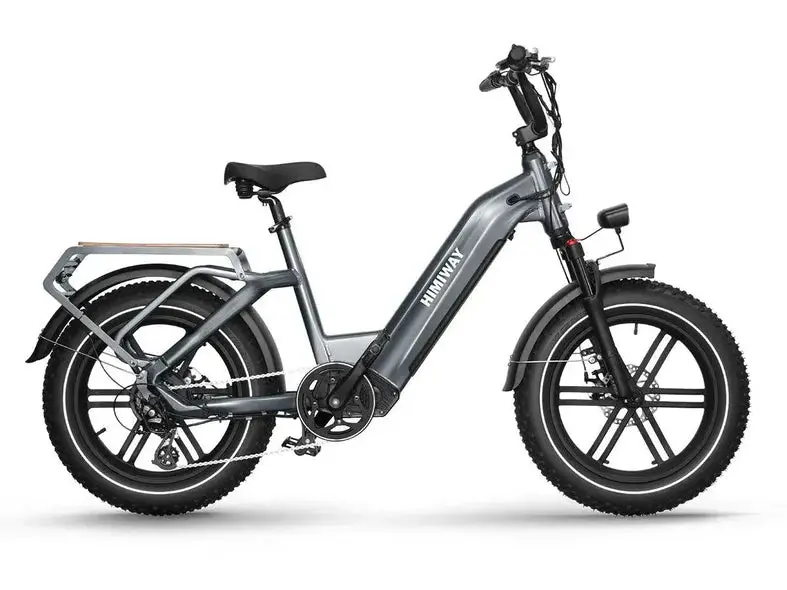

BIG DOG

• A – Total Length 70
• B – Handlebar Height 43
• C – Wheelbase 46.4
• D – Minimum Seat Height 27.6
• E – Maximum Seat Height 35.4
• F – Chain Stay Length 17.5
• G – Standover Height 32
• H – Top Tube Length 25.2
• I – Wheel Diameter 23.2
• J – Head Tube Length 8.3
• K – Handlebar Length 27.6

• Battery 48V 20Ah Samsung/LG lithium battery

• Range 60–80miles

• Hub Motor 750W brushless gear motor

• Total Payload Capacity 400 lb.

• Recommended Rider Heights5’1″ ~ 6’5″

• Charger US standard 3.0 A smart charger

• Controller 48V/22A

• Display LCD display with USB charging

• Weight 88 lb.

• Pedal Assist Intelligent 0~5 level pedal assist

• Tires 20″ x 4″ Kenda fat tires

• Brake lever Aluminum alloy comfort grip levers with motor cutoff switch

• Rear Light Integrated tail light

• Freewheel Shimano 7 speed gear shift system

• Brake180mm hydraulic disc brakes

• Chain KMC chain

• Stem MA-5040 28.6*31.8MM

• Crank 46T*170MM 4-jaw L/R forged alloy

• Gearing Shimano- 14-28T BROWN/BK

• Front Fork Alloy front suspension fork with lockout and adjustment

• Throttle Half twist throttle

• Pedal Alloy pedal with reflectors

• Bike Frame Upgraded 6061 Aluminum frame

• Front Light 48V LED light

• Saddle SR saddle

• Seat Post 34*350mm Alloy Seatpost

• Kickstand Heavy-duty aluminum

• Spokes Alloy Wheels
