Description

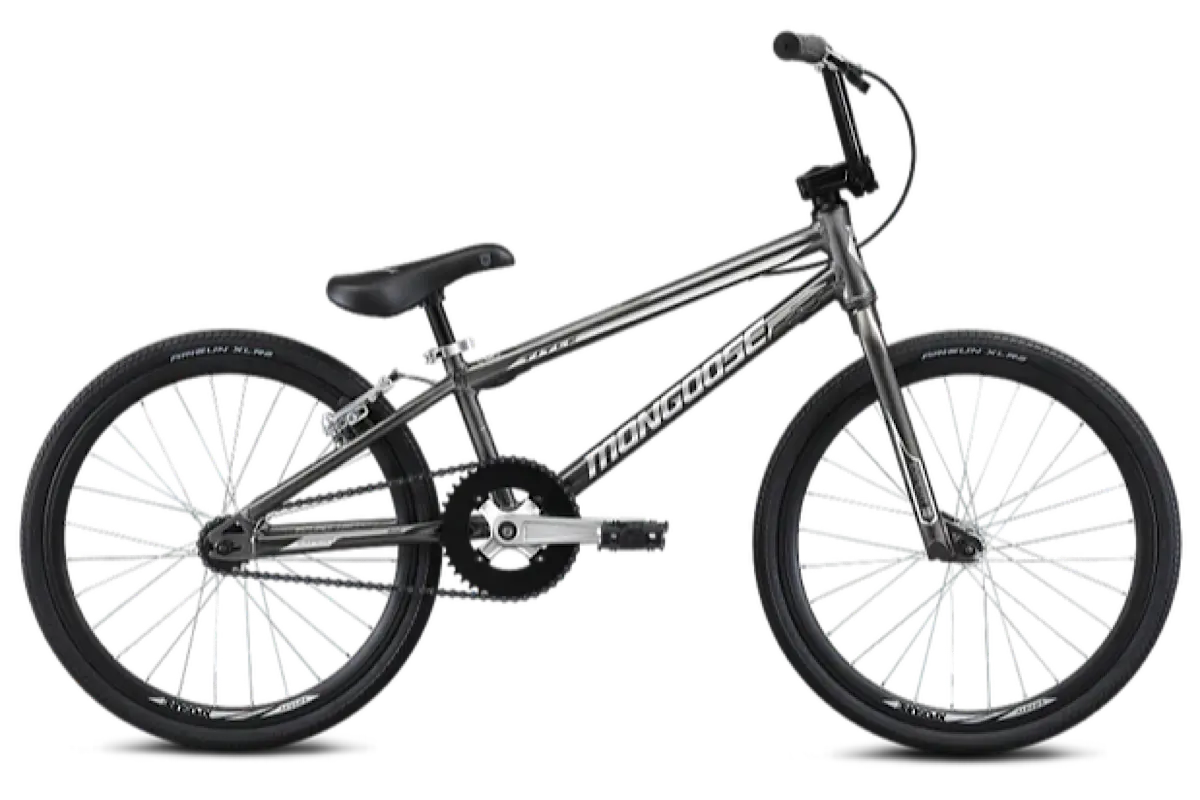

Lightweight Tectonic T1 aluminum frame, integrated headset, and internal cable routing. 20.75″ top tube length and frame weight of 3.11 lbs.

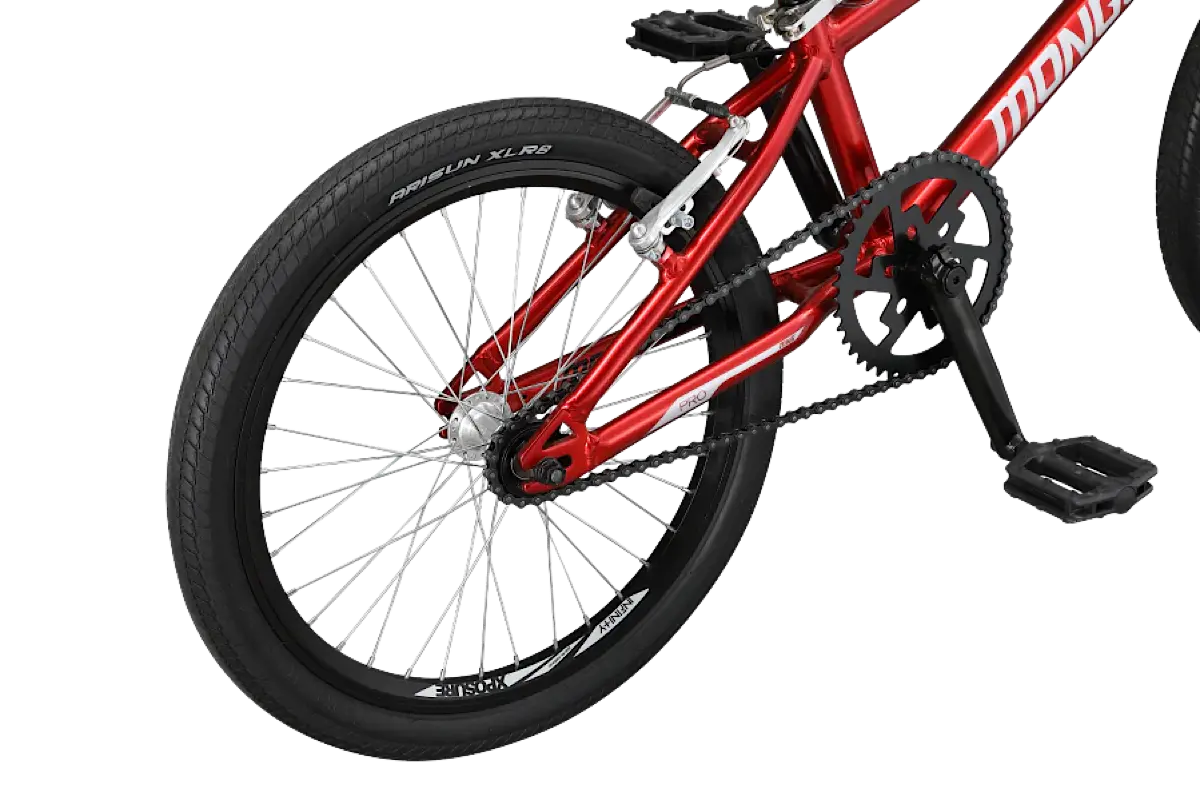

Drivetrain features 170mm 3-piece tubular chromoly cranks with a 44T chainring and euro cartridge bottom bracket.
Arisun XLR8 20″ x 1.95″/1.75″ race tires mounted on aluminum double wall rims with aluminum ball bearing front hub and 16T cog freewheel rear hub.
Hi-Ten steel handlebar and fork, 50mm stem, sealed bearing headset, and alloy V-brake and brake levers, Suggested rider height is 5’3″ – 5’8″
GEOMETRY & SIZING
| PRO | |
|
HEADTUBE ANGLE (DEGREE) |
74 |
|
SEAT TUBE ANGLE (DEGREES) |
71 |
|
TOP TUBE LENGTH (MM) |
527 |
|
SEAT TUBE LENGTH |
233 |
|
STANDOVER HEIGHT (MM) |
530 |
|
HEADTUBE LENGTH (MM) |
120 |
| CHAINSTAY LENGTH (MM) | 364 |
| FORK OFFSET (MM) | 35 |
| BOTTOM BRACKET DROP (MM) | 38 |
| WHEELBASE (MM) | 946 |
| STEM LENGTH (MM) | 50 |
| BAR WIDTH (MM) | 700 |
| SEAT POST SIZE (MM) | 27.2 |
