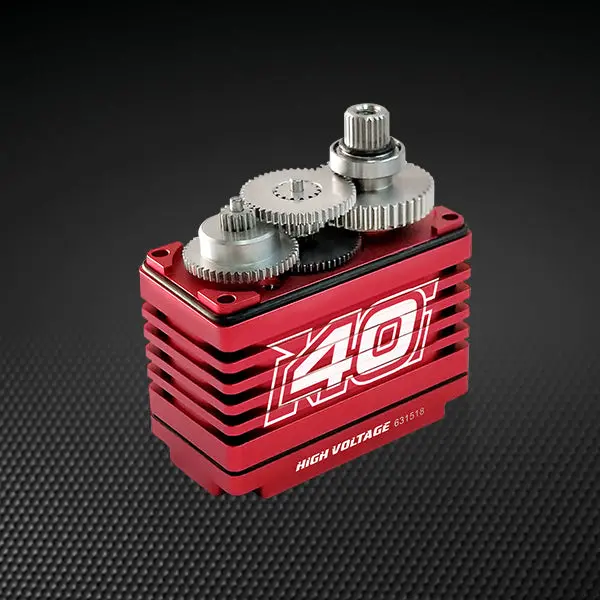

Power HD A-40CHV High-Torque Digital Aircraft Servo — 40 kg-cm Stall Torque, 0.10 sec Speed at 8.4V

Description

***non water resistant servo***

A-40CHVTorque(6.0V): 25.0 kg-cm ( 347.2 oz/in)
Torque(7.4V): 35.0 kg-cm ( 486.1 oz/in)
Torque(8.4V): 40.0 kg-cm ( 555.5 oz/in)
Speed: 0.14 sec (6.0V)│0.12 sec (7.4V)│0.10 sec (8.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 80 g (2.82 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Coreless Motor
Gear Type：Steel & Aluminum
Operating Temperature：-20℃~60℃
Working frequency：1520μs / 333hz
Size：40.7 x 20.5 x 38.7 mm ( 1.60 x 0.81 x 1.52 in)
