Description

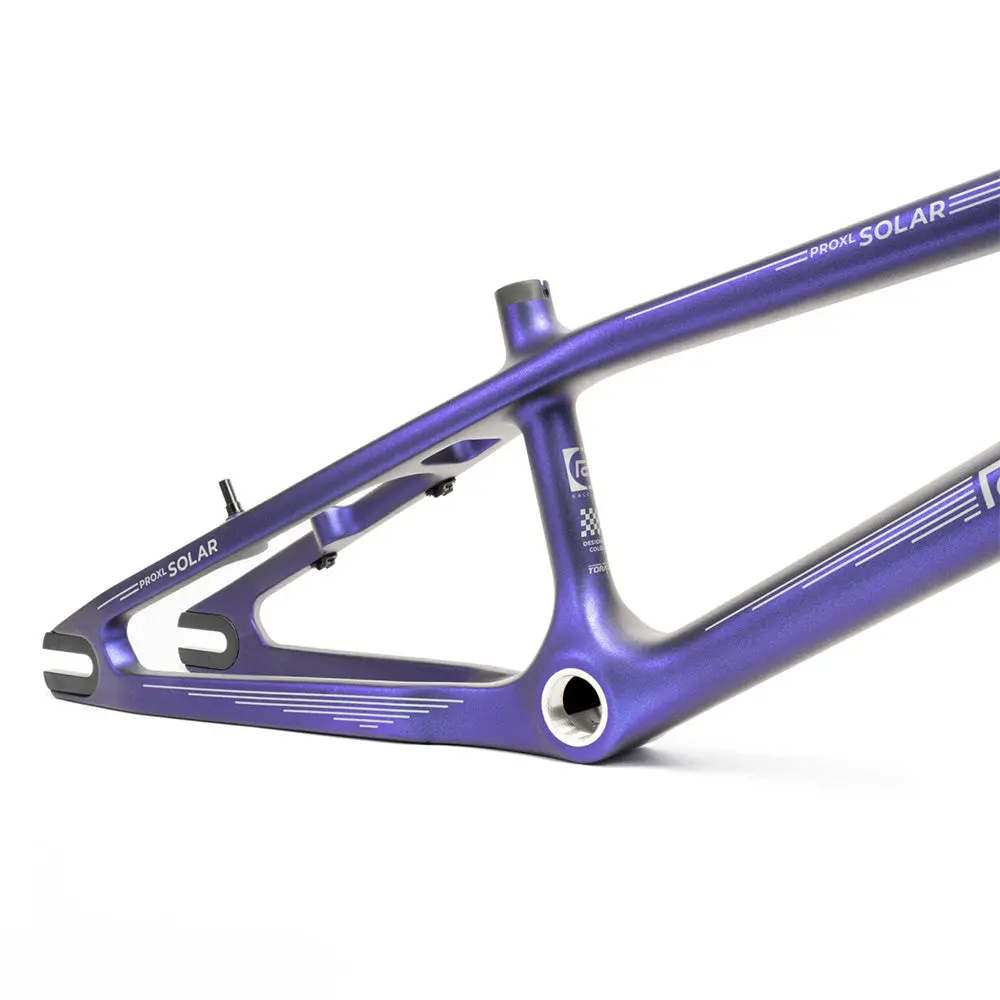

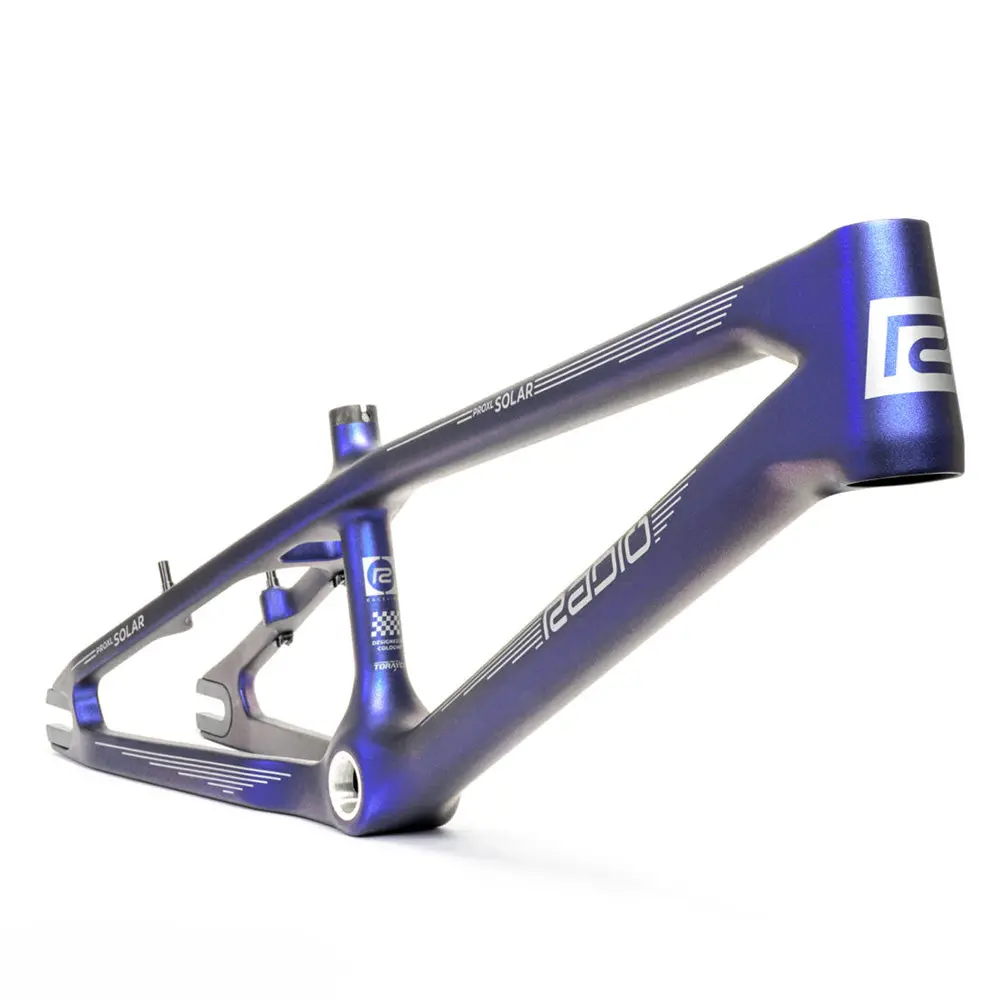

THE SOLAR FRAME IS LABORATORY TESTED AND PROVEN TO BE INSANELY STIFF AND LIGHTWEIGHT, ESPECIALLY UNDER HIGH IMPACT. THE INTERNAL CABLE ROUTING ALLOWS FOR A SUPER CLEAN AND STEALTHY SETUP.
THE SOLAR FRAME HAS BEEN TESTED BY THE RACE RACELINE TEAM OVER THE PAST X2 SEASONS BEFORE PRODUCTION, AND IT’S NOW BECOME THE FRAME OF CHOICE FOR MANY OF TODAY’S TOP RIDERS.
SPECIFICATIONS
Material: High-performance TORAYCA carbon fiber
Top Tube Length (Actual): 21.25″ (XL) 21.75″ (XXL)
Top Tube Length (Effective): 22.5 (XL) 22.9″ (XXL)
Chainstay Length (min): 14.5″
Dropout Size: 15mm
Headtube Angle: 74.5°
Seat Tube Angle: 71°
Head Tube Size: Tapered 1-1/8″ – 1.5″
Seat Tube Size: 27.2mm
Seat Tube Length: 238mm
Bottom Bracket Type: Euro, threaded, BSA 68mm
Bottom Bracket Height: 11.6″
Wheel Size: 20″ X 1.75″
Extra Features: Full monocoque construction, Internal cable routing
Weight: 2.57 lbs (XL) 2.66 lbs (XXL)
