Description

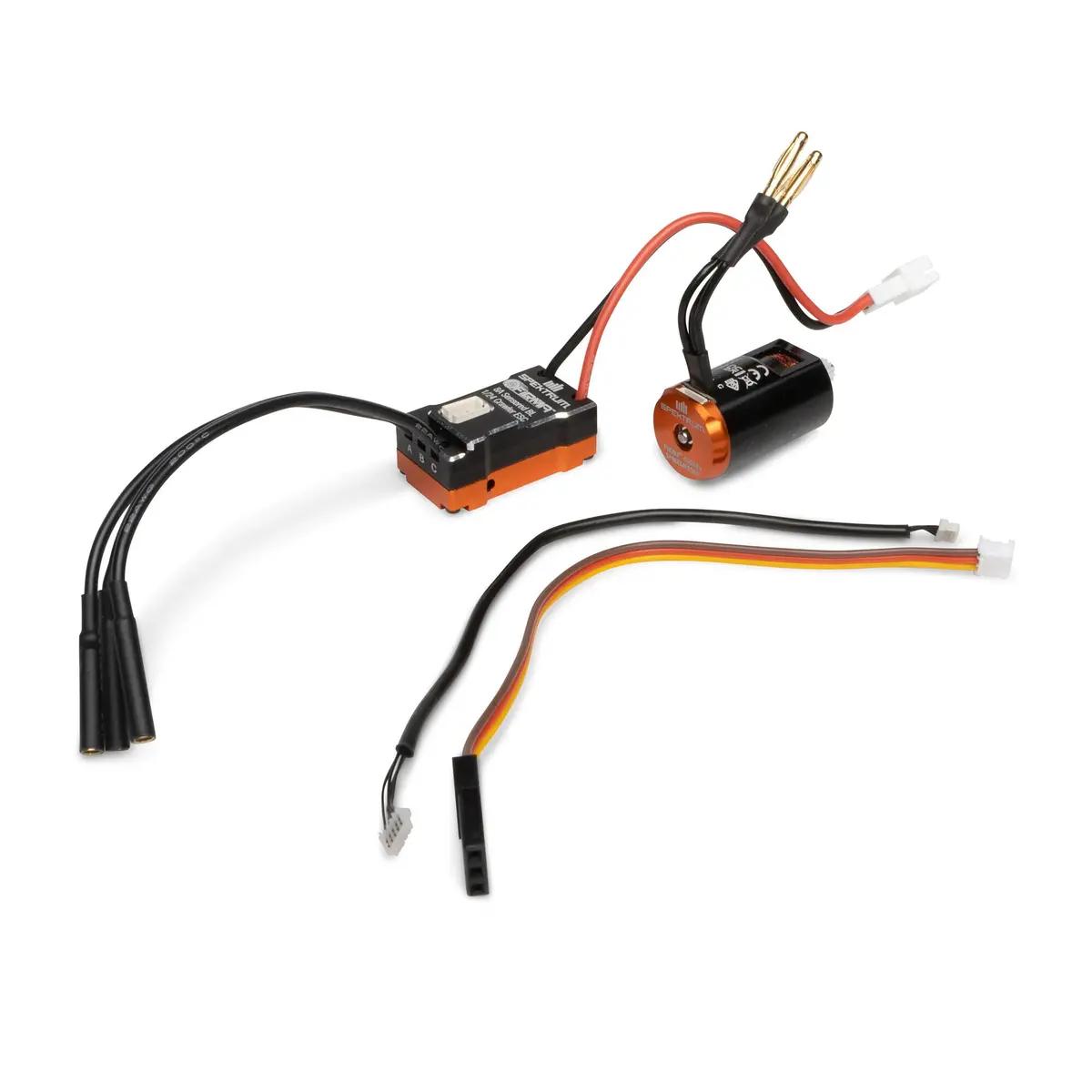

The Spektrum™ Firma™ 1/24th Brushless ESC + Motor Combo is a great choice for micro crawlers and more running on 2S LiPo power. It features a high-precision magnetic encoder and rotor position sensor that provides excellent 1 to 1 control feel when driving at any speed and at any angle. Perfectly suited for trail driving and rock crawling competitions. This advancement in sensored motor control allows the ESC to match the throttle input to the motors RPM with unmatched precision. This combo is specifically designed for the Axial® SCX24 & AX24 platform to provide the ultimate performance for maximum power and realism. Preinstalled with 2mm bullet connectors for easy installation.
- Reliable 4500Kv Sensored Brushless Motor with excellent slow speed control and smooth operation
- Drop-in conversion to all Axial 1/24th Scale SCX24 & AX24 RTR vehicles.
- *Note: Axial SCX24 vehicles equipped with HRZ00014 2-in1 Receiver and HRZ00015 transmitter requires an SLT3 Transmitter and receiver upgrade for functionality. Please refer to the manual for more information. (2021 Ford Bronco, Jeep GT Gladiator, and Jeep Wrangler will require this upgrade)
- All included – includes motor, ESC, sensor wire and pinion gears
- Crawler Mode: Forward and instant reverse with drag brake
- 8 Amp (40 Amp Burst) 1-2S Compatible ESC
- Compact Size and Ready to Install
Specifications
- Auto Cutoff
- Yes
- BEC
- Yes
- Brakes
- Integral with ESC
- Connector Type
- PH 2.0 (High-Current Ultra Micro)
- ESC Type
- Brushless Sensored
- Forward
- Yes
- Input Voltage
- 1 – 2S LiPo
- Low-Voltage Cutoff Programmable
- No
- Maximum Burst Current
- 40A
- Maximum Continuous Current
- 8A
- Motor Type
- Brushless Sensored
- Number of Poles
- 2
- Output Connector
- 2mm Bullet
- Overload Protection
- Yes
- Reverse
- Yes
- RPM/Volt (Kv)
- 4500
- Sensored
- Yes
