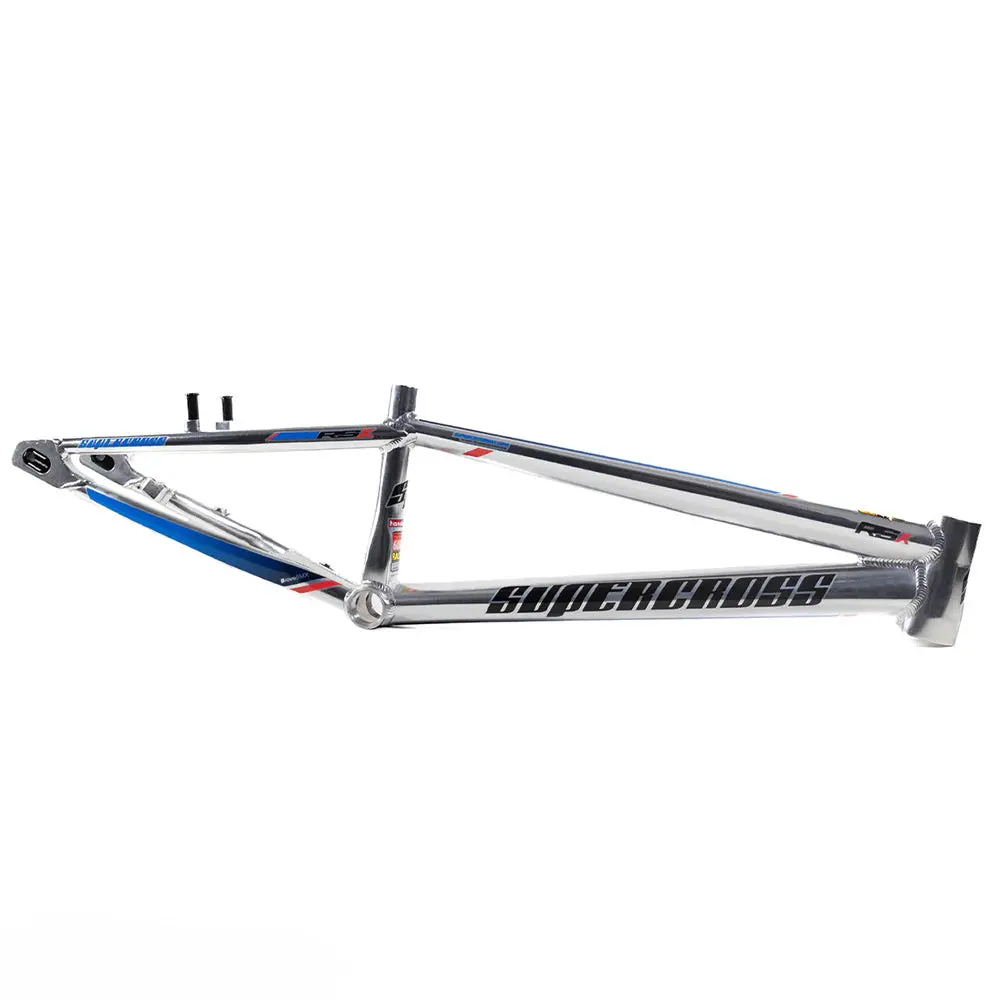

Supercross Vision RSX 24-Inch Race-Focused BMX Frame

Description

The VISION RSX is forward-thinking as it’s designed for not only today’s needs but the needs of tomorrow!

• Taper wall 6000 series aluminum frame
• Every VISION RSX accepts 120mm Disc Brake rotors AND all V-Braking systems
• Molded internal cable ports for both the upper V-Brake routing and lower DISC routing to avoid any extreme bends that would hinder the cable lines
• Full captive rear dropout, with the axle fully encased
• FLIP/CHIP allows for easy installation of 15mm or 10mm ( 3/8 ) axles, able to be mounted rear or front and swappable to accomodate proper sizing.
• Built-in Idler/Guide that will take out chain slack
• Traditional threaded Euro BB Shell across all models
• CNC’d Hollow 6061 T-6 Billet Aluminum Dropouts
• Head tubes use full CNC’d Aluminum Bearing Races
• Pro and Larger sizes feature Tapered Integrated head tubes that accept 1 1/8″ – 1.5″ steer tube forks
• Accepts a traditional 1 1/8″ straight steer tube with the assistance of an adapter
• Expert XL uses a Campy Std. Size for 1″ or 1 1/8″ steer tube forks depending upon which bearing kit you use

Each Pro size Supercross BMX VISION RSX Frame Contains a Hydraulic Disk Brake Adapter Kit, Removable V-Brake Mounts, 2 Sets of FLIP/CHIP’s (1-15mm set and 1-10mm ( 3/8″) set) Expert XL, only contain 1 set of Flip Chips for the 10mm Axle size. Idler sold separately
