Description

Classis Style. Modern Performance

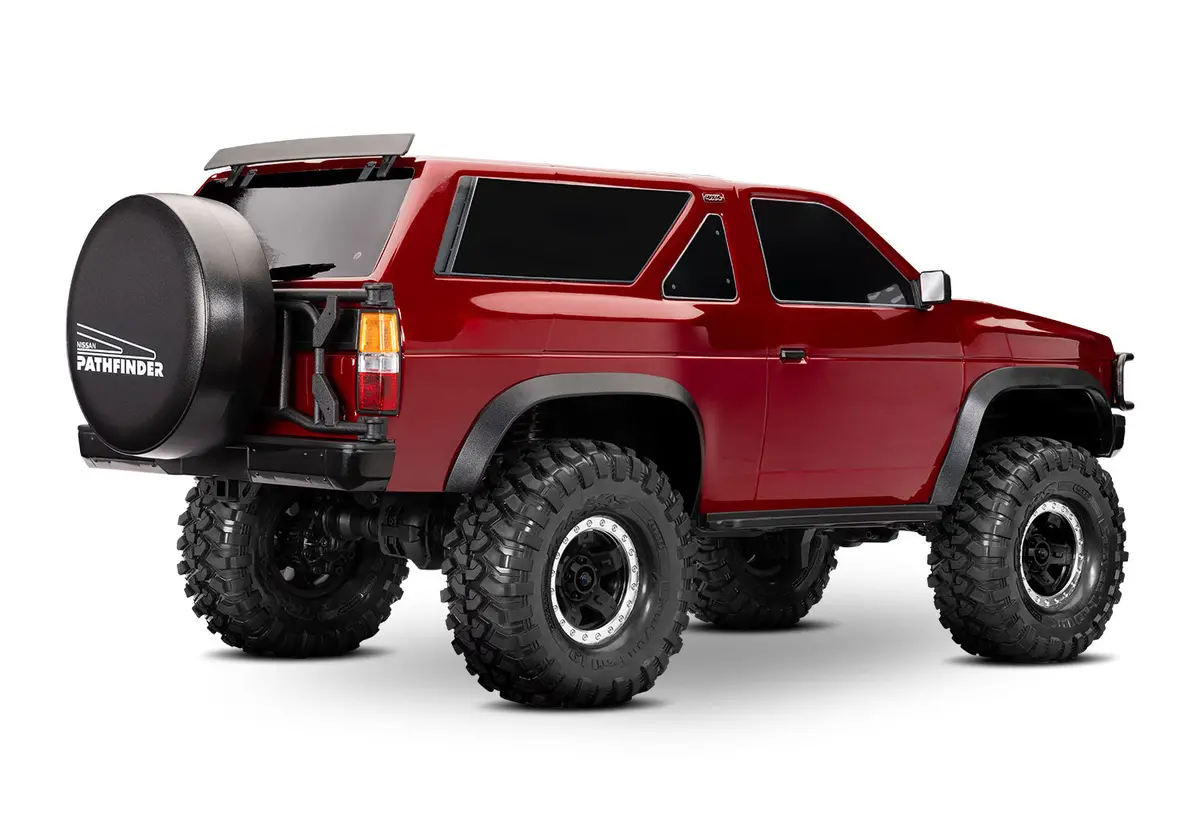

The Nissan^® Pathfinder^® debuted in 1987 and defined a new era of 2-door sport utility vehicles with its rugged body-on-frame construction, powerful V6 engine, and bold offroad styling. Traxxas honors Pathfinder with a beautifully detailed reproduction mounted on the proven TRX-4^® chassis. From the iconic grille and squared-off lines to period-correct badging, TRX-4 Pathfinder captures the spirit of the original Pathfinder with Traxxas performance and durability.

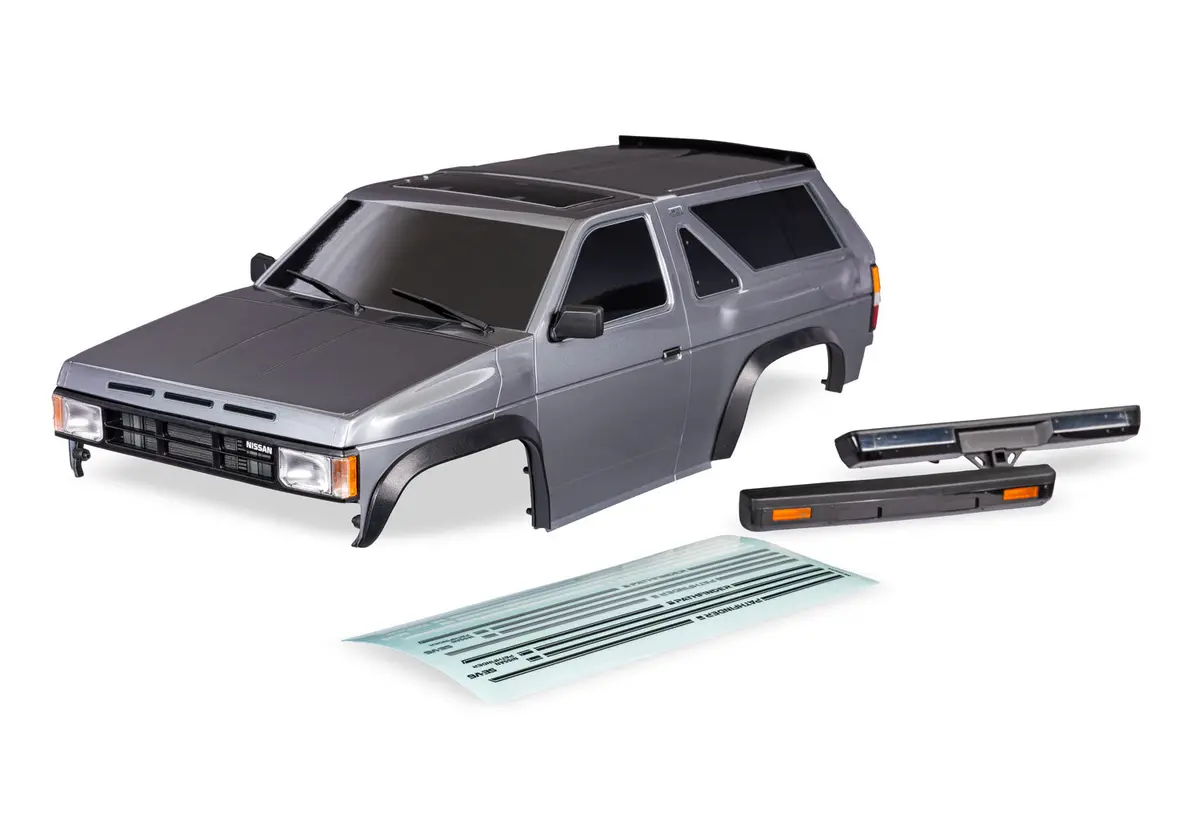

Officially Licensed Replica Body

TRX-4 Pathfinder sets the standard for scale detail in RC crawlers. Classic 80’s style comes back to life with authentic molded details, period-correct badging, and stunning high gloss paint.

Clipless Body Mounting

TRX-4 Pathfinder’s clipless body mounting system combines clean flowing lines with secure latching convenience. The hidden latches hold tight on the trail no matter how intense the action gets, but release in just seconds to access the chassis.

3s Power System

The powerful 3s LiPo-capable XL-5™ HV ESC and 21-turn Titan^® motor provide endless torque to tackle the steepest climbs and all-out speed on flat terrain. This efficient system provides up to 2 hours of run time with a Traxxas 3s 5000 mAh LiPo battery pack!

The Power of Portals

Portal axles lift the truck at the wheels for huge center pumpkin ground clearance. To achieve the same clearance with straight axles, the tires would have to be over an inch taller than the tires on TRX-4 Pathfinder.

Remote Locking Differentials

Traxxas allows you to lock and unlock both the front and rear differentials remotely from your transmitter. New sleeved micro cables control the differential action for scale appearance, without limiting suspension articulation.

High/Low Range Transmission

When the going gets tough, engage low range on the TQi transmitter for incredible 4WD pulling torque. Shift into high range for blasting down the trail. TRX-4 Pathfinder adapts to any situation or driving style.

MODEL SPECS

Model Name:	TRX-4 Nissan Pathfinder
Type:	Trail / Crawler
Skill Level:	1
Scale:	1/10
Weight:	6.78 pounds (3.08 kg)
Length:	22.72 inches (577 mm)
Width:	9.78 inches (249 mm)
Track:	9.78 inches (249 mm)
Height:	9.49 inches (241 mm)

Wheelbase:	12.28 inches (312 mm)
Center Ground Clearance:	3.14 inches (80 mm)
Drivetrain:	Shaft-driven 4WD
Transmission:	2-speed high/low, remote shifting
Differential Type:	4 gear, remote locking
Gear Pitch:	32 pitch
Servo:	2075X metal gear, digital high-torque waterproof
Radio System:	TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver
Battery Compartment Specs:	159 mm X 47 mm X 23 mm

MOTOR SPECS

Motor Name:	Titan® 21T Reverse Rotation
Type:	High-torque brushed motor
Weight:	8.47 ounces (240 g)
Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Diameter:	1.53 inches (39 mm)
Shaft Size:	3 mm
Connector Type:	Bullet

ESC SPECS

ESC Name:	XL-5™ HV
Type:	Brushed
Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm)
Weight:	2.60 ounces (74 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High-Current Connector
Power Wire:	14 gauge

MODEL 110056-4: TRX-4 Scale and Trail™ crawler with Nissan^® Pathfinder^® Body: 1/10 scale 4X4 trail truck, fully-assembled, waterproof electronics, Ready-To-Drive^®, with TQi™ 2.4 GHz 4-channel radio system, XL-5™ HV speed control, high/low transmission, remote locking differentials, and clipless painted body.

What’s In The Box:

• TRX-4, Ready-To-Race model
• XL-5 HV waterproof electronic speed control
• Titan 21T reverse rotation motor
• TQi 2.4 GHz radio system with cruise control
• High quality maintenance tools

What You’ll Need:

• Batteries

  TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.

• Charger

  Traxxas EZ-Peak^® Live charger is recommended for easy and fast charging performance (model 2971).

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter.
