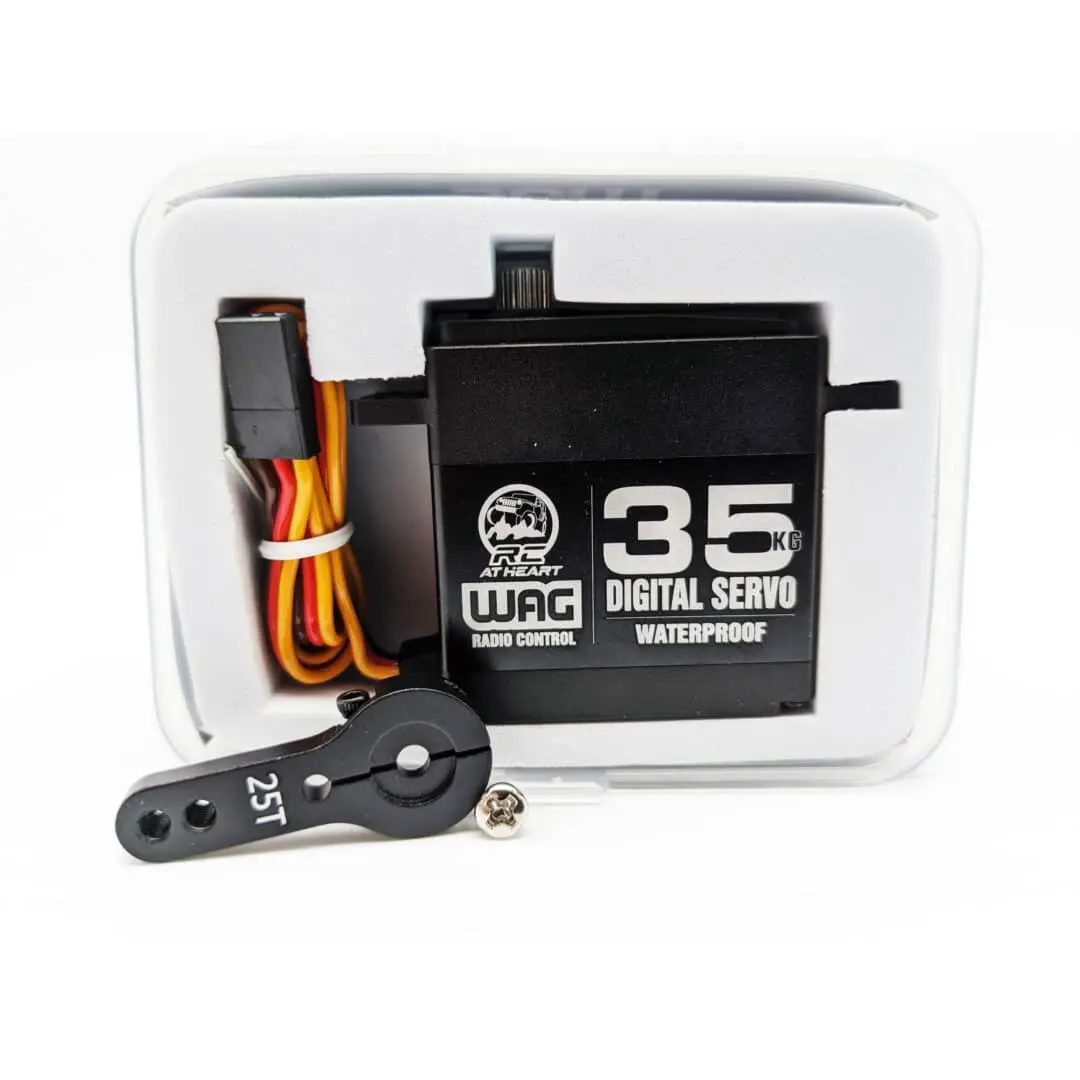

WH-D35 35kg-cm Waterproof Servo Motor with IP54 Protection for Robust Outdoor and Industrial Use

Description

Storage Temperature -30°C ± 80°C
Operating Temperature Range -20°C ± 60°C
Secure Performance And Certificate EMC & ROHS
Operating Voltage 6v 7.4V
No Load Speed 0.238sec/60° (42rpm) 0.192sec/60° (52rpm)
Running Current (no load) 150mA 180mA
Stall Torque (at lock) 28.8kg/cm (400.65oz/in) 35.5kg/cm (493.86oz/in)
Stall Current (at lock) 3.2A 3.9A
Idle Current (stopped) 6mA 6mA
Input Voltage 4V-8.4V
Rated Current 1000mA 1200mA
Size 55x20x43
Case Material All Aluminium
Gear Material Steel
Horn Type 25T/5.9mm
Motor Core Motor
Operating Travel 180°
Waterproof Performance IP54
Weight 75g
