Description

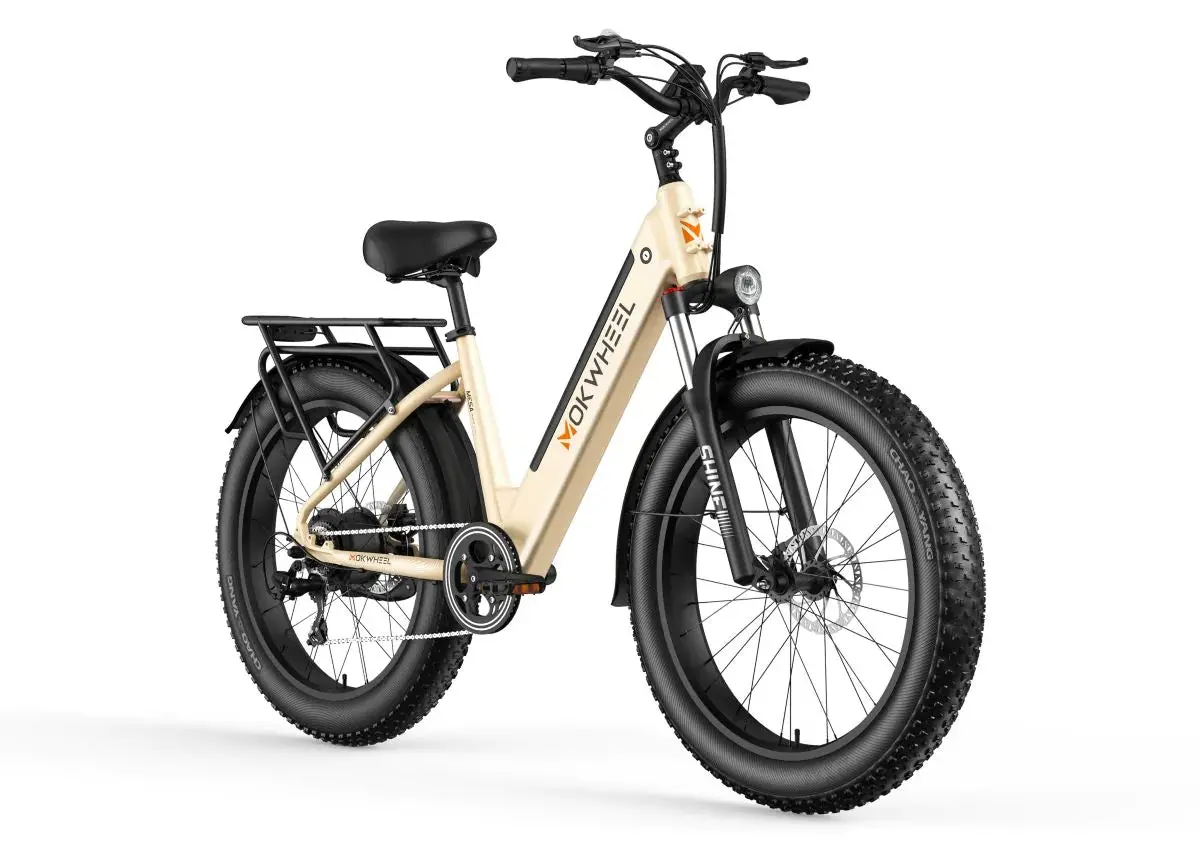

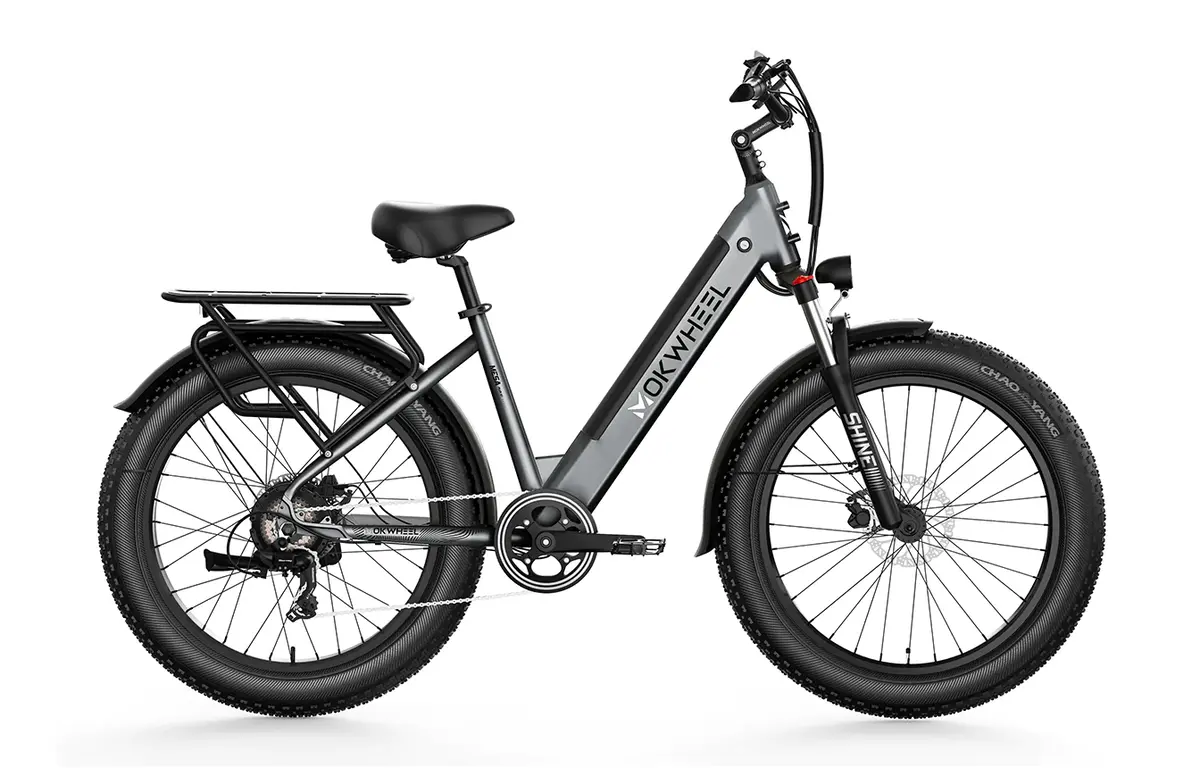

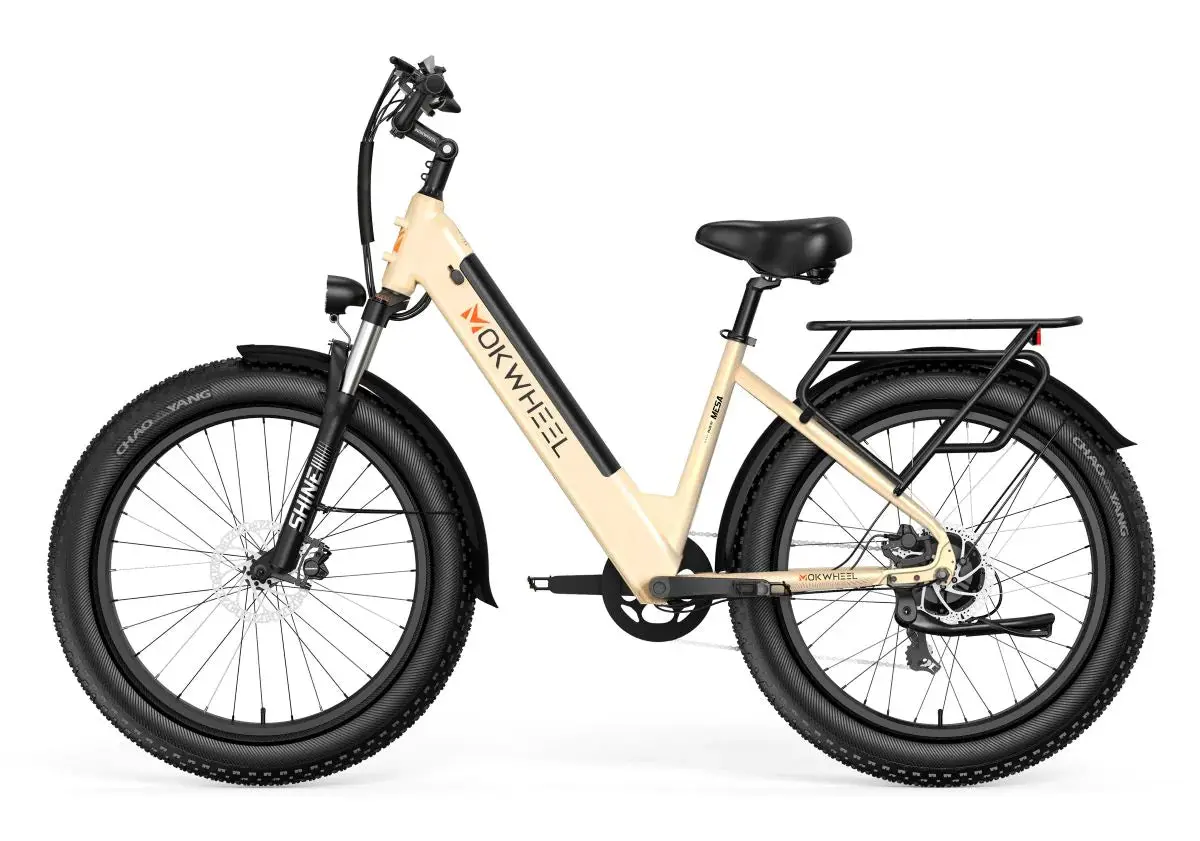

Mesa Plus ST

Tackle the road and ride up the hill. Constructed with bigger wheels for better control and greater power, this model keeps it friendly with a step-thru design made for everyone. Don’t be intimated by strength and bulk.

 Free 2 Year Electrical Warranty / 10 Year Frame Warranty

Free Accessories Included:

Full Fenders – $100.00 USD: FREE

Rear Rack – $80.00 USD: FREE

Specifications

Battery: 48V16A

Range: 35~55miles

Charger: 48V 3.0A 100-240V

Motor: 750W

Speed Class: Level 1(10mph),Level 2(15mph),Level 3(20mph),Level 4(25mph),Level 5(28mph)

Payload Capacity: 400lbs

Weight: 70lbs

Rider Height: 5’3″ ~ 6’4″

Components

Tires: 26″ x 4″

Lights: LED Integrated
Brake Rotors: 180mm

Brake lever: Aluminum Alloy

Chain: KMC
Crank Set: 210mm Forged Alloy
Derailleur: 7-speed Shimano

Controller: 48V/22A

Front Fork: Adjustable Suspension Fork

Frame: 6061 Aluminum Alloy

Gearing: 1-7 Speed Shimano 14-28T Brown

Throttle: Half-twist

Handlebar: Custom Aluminum Alloy

Kickstand: Sturdy Aluminum Alloy
Pedals: Anti-Slip

Rims: Aluminum Alloy

Saddle: Cushioned Padding
Seat Post: 1.2″ x 12″

Freewheel: 7-speed freewheel

Spokes: Front 13 and Rear 12 Gauge

Geometry

1. Total Length: 74.5″

2. Handlebar Height: 49.5″

3. Wheelbase: 46.5″

4. Minimum Seat Height: 26″

5. Maximum Seat Height: 34″

6. Chain Stay Length: 23.5″

7. Standover Height: 18.5″

8. Reach: 24″

9. Wheel Diameter: 28″

10. Head Tube Length: 7.0″

11. Handlebar Length: 28″

12. Seat Tube Length: 18″

13. Minimum pedal Height: 5.5″
