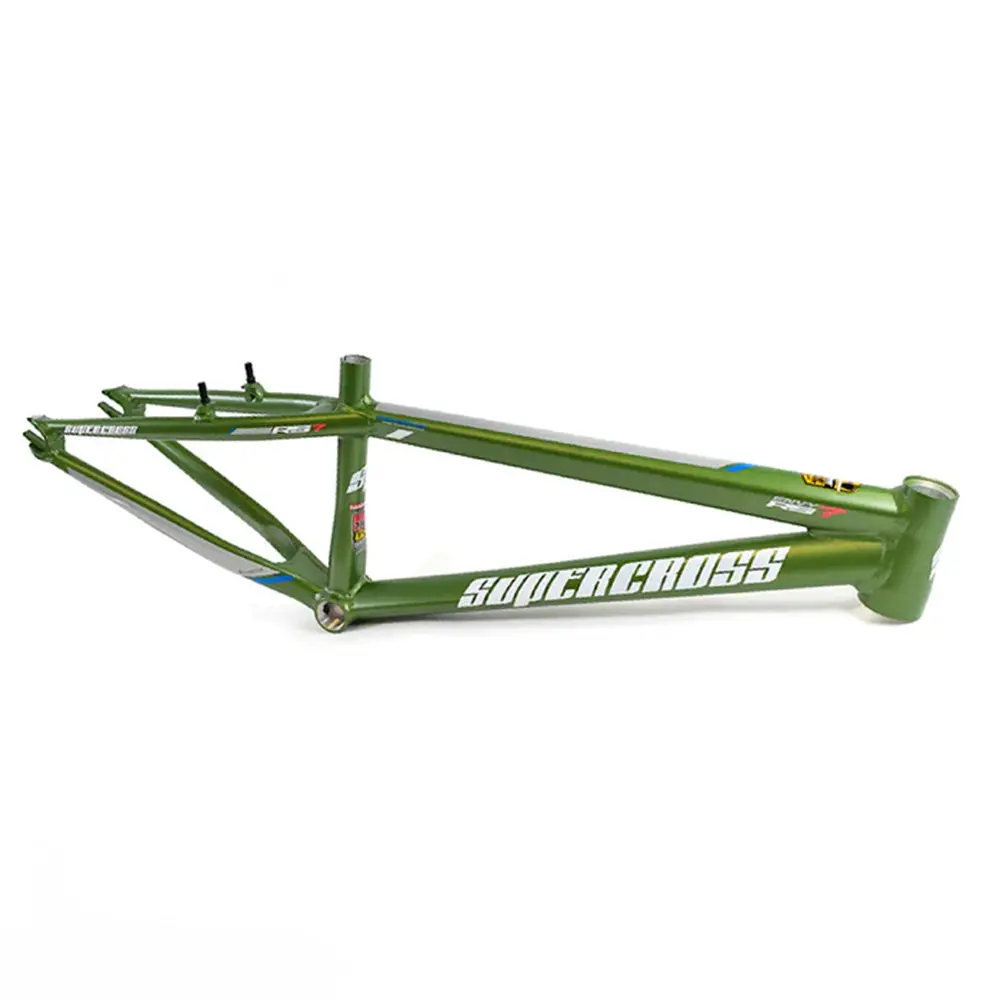

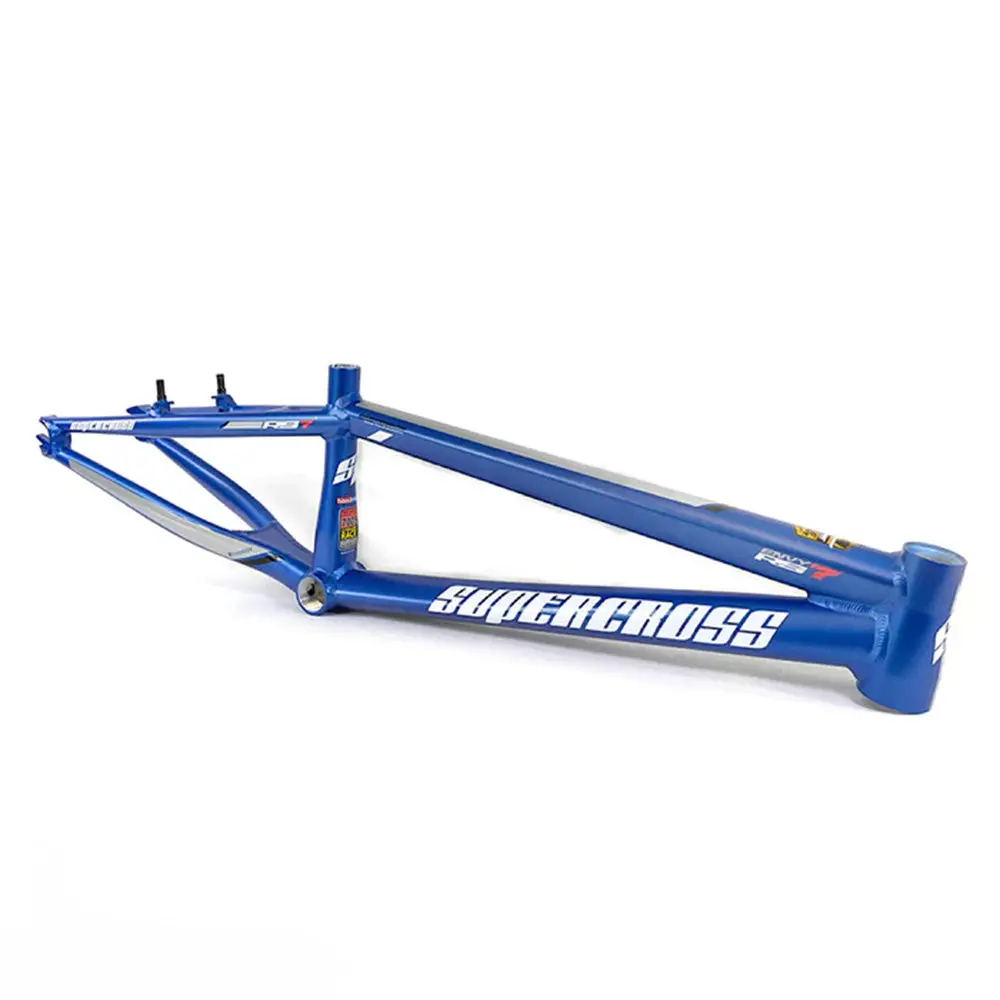

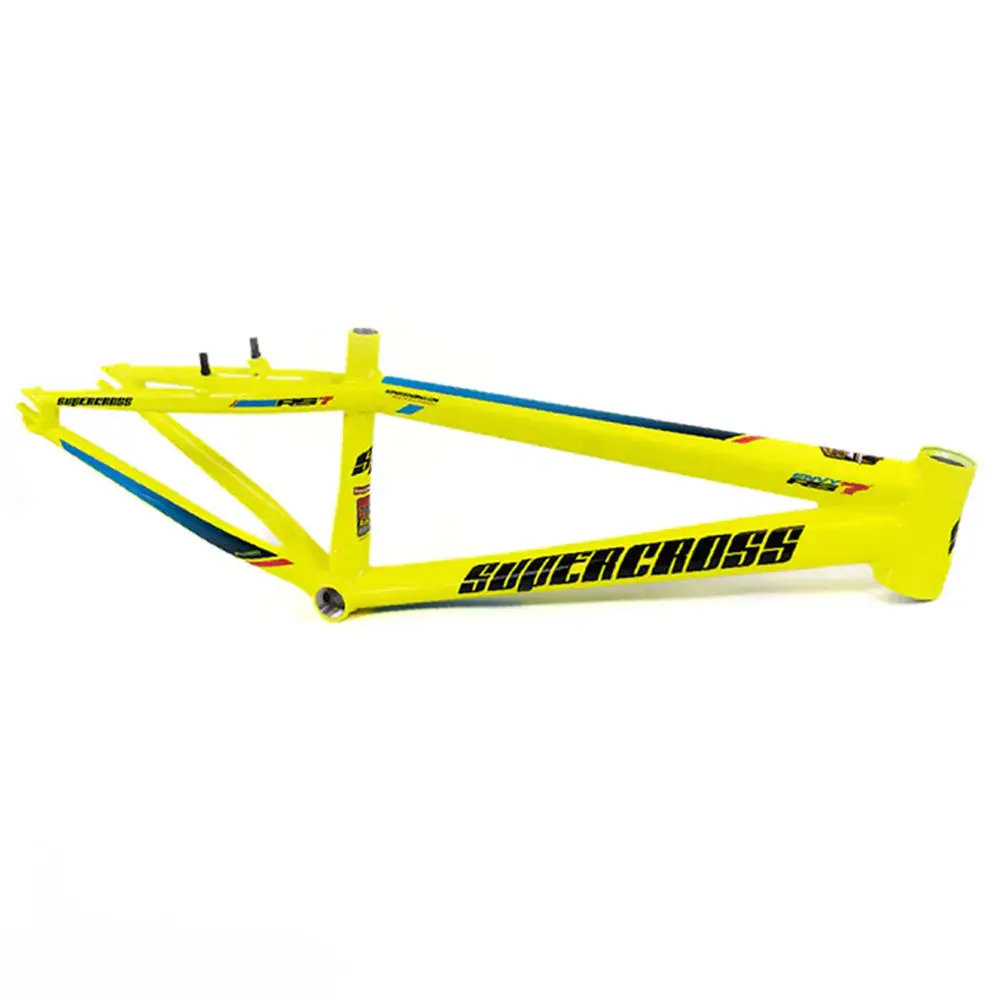

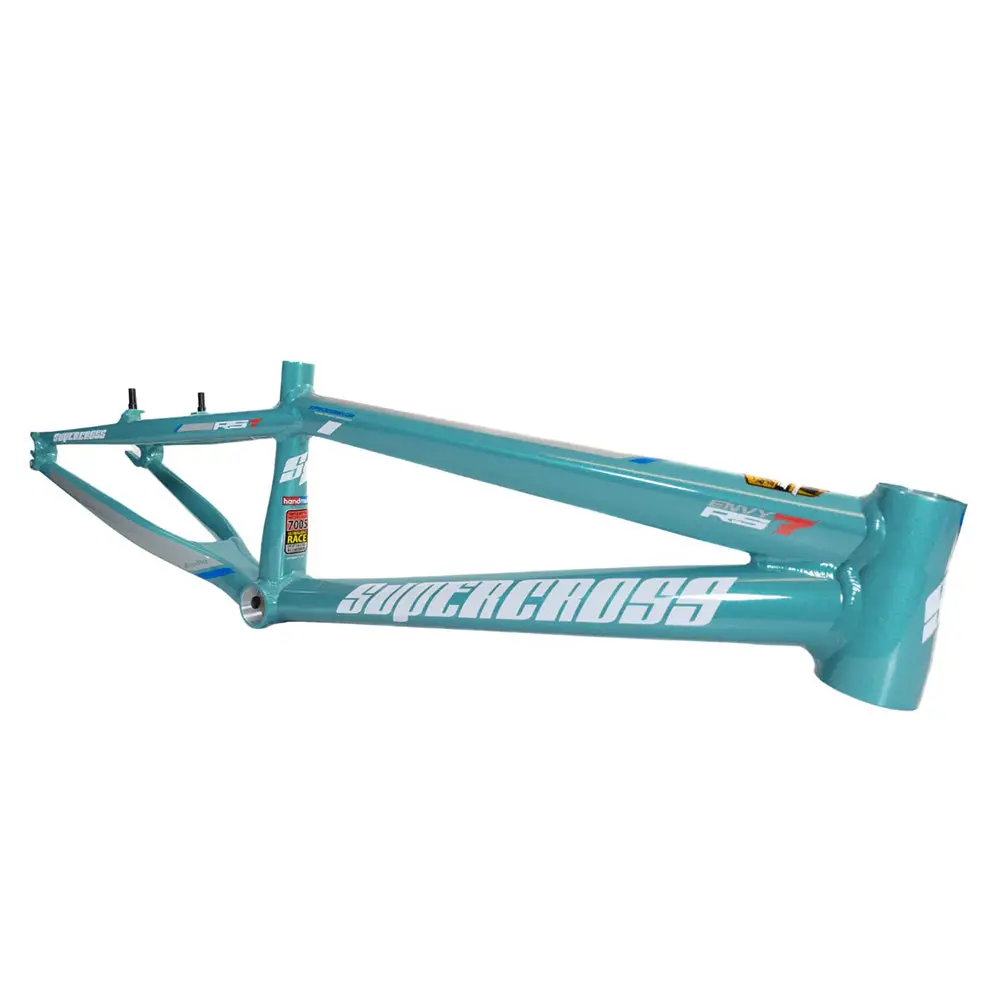

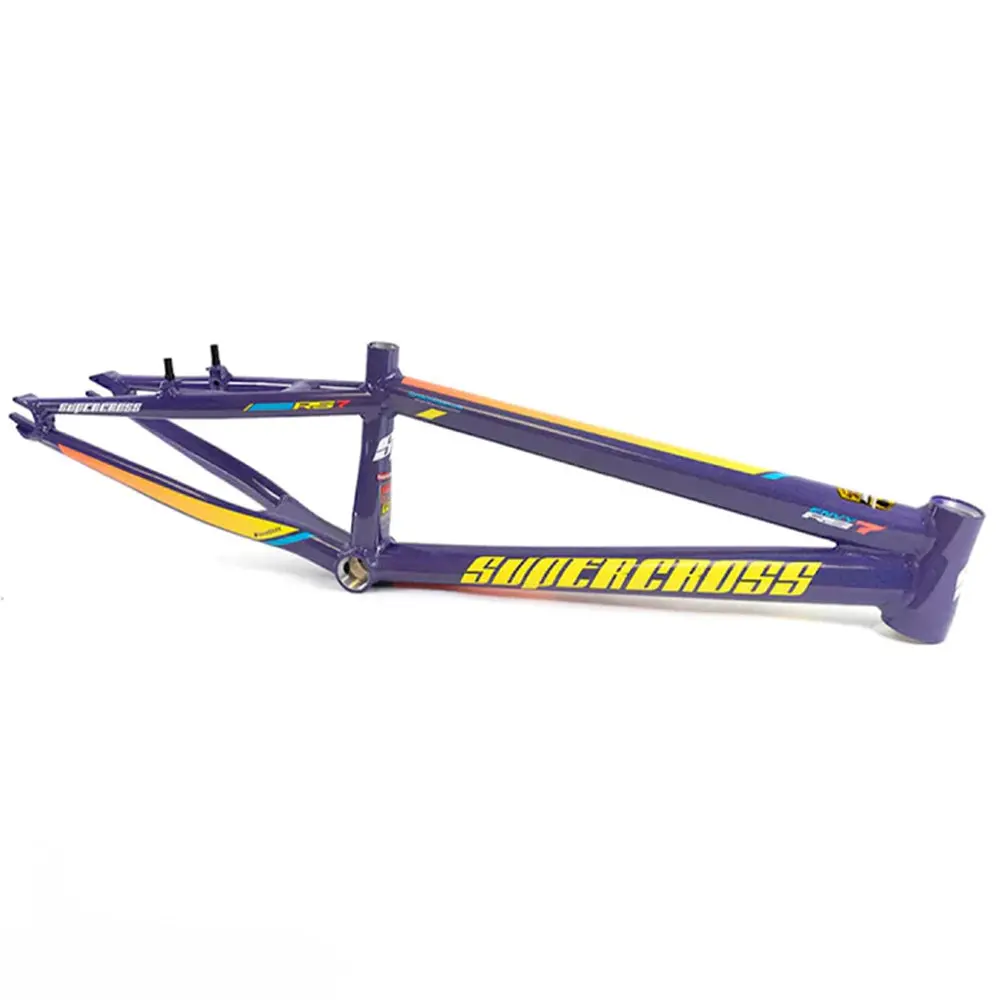

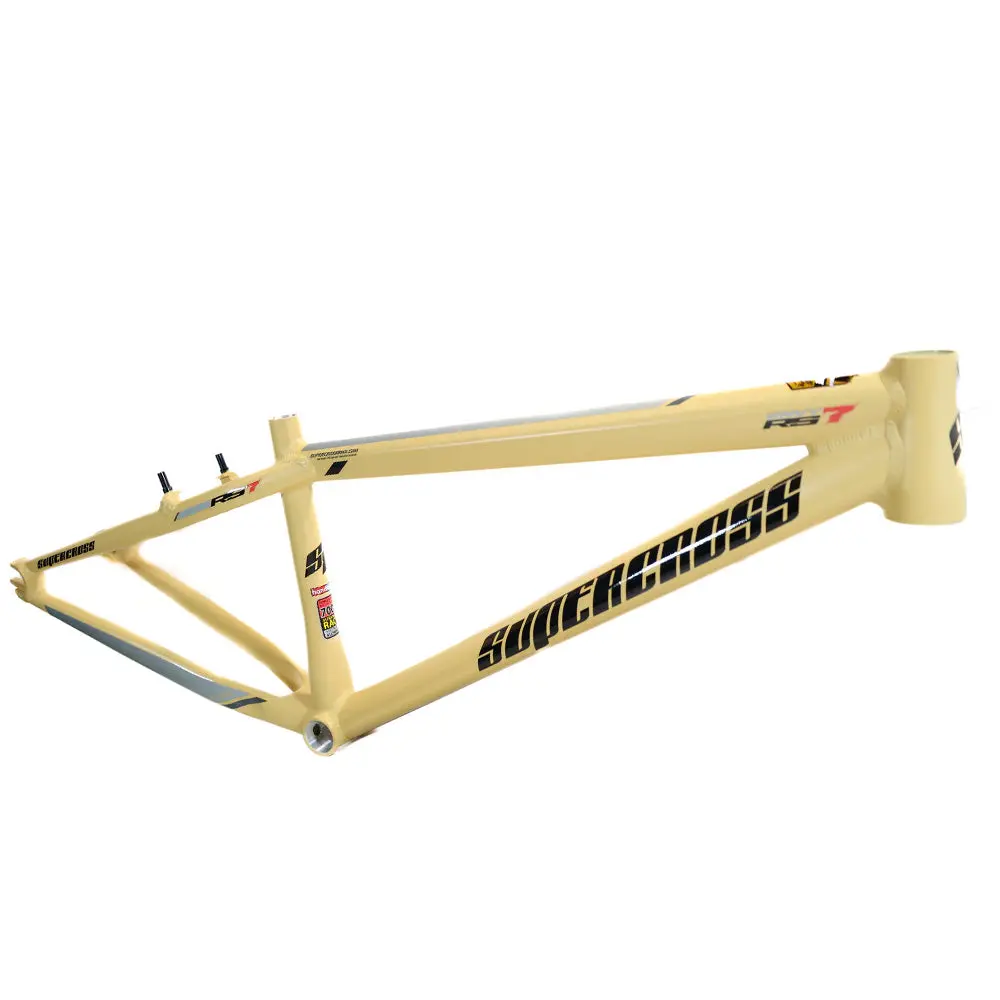

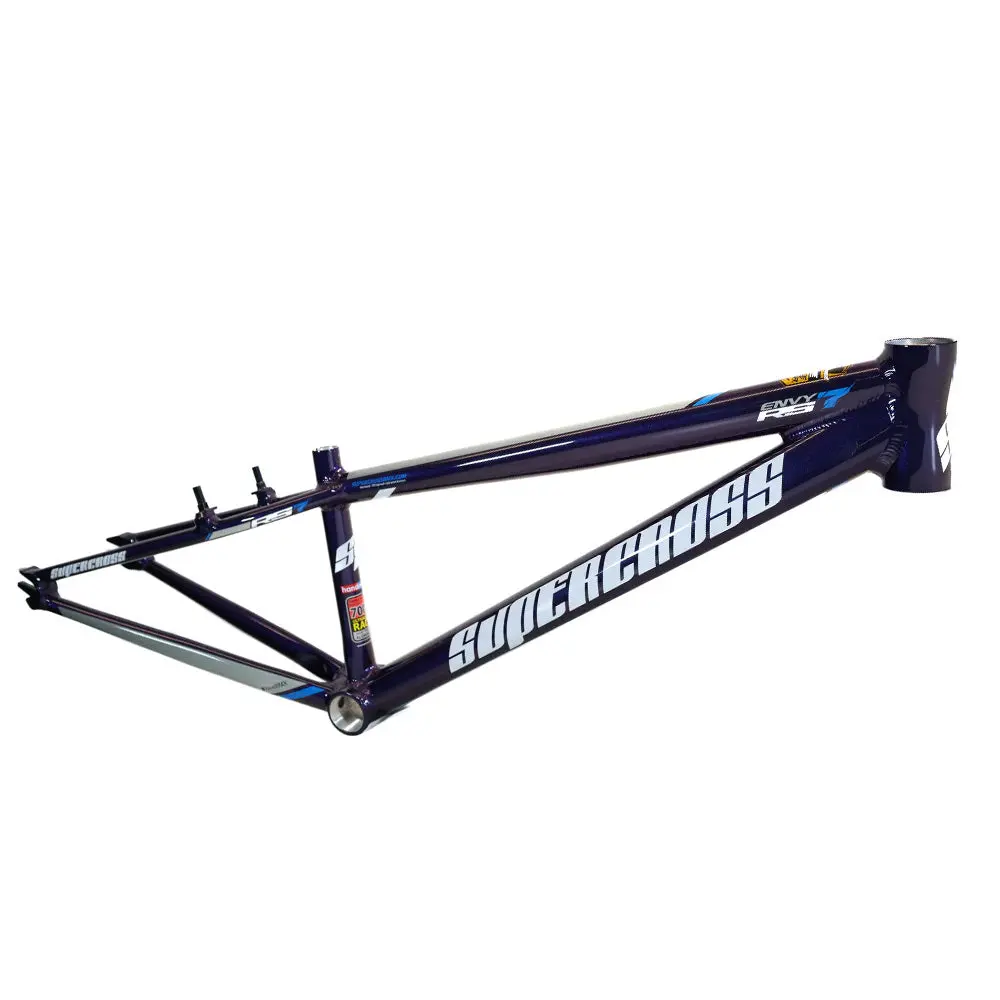

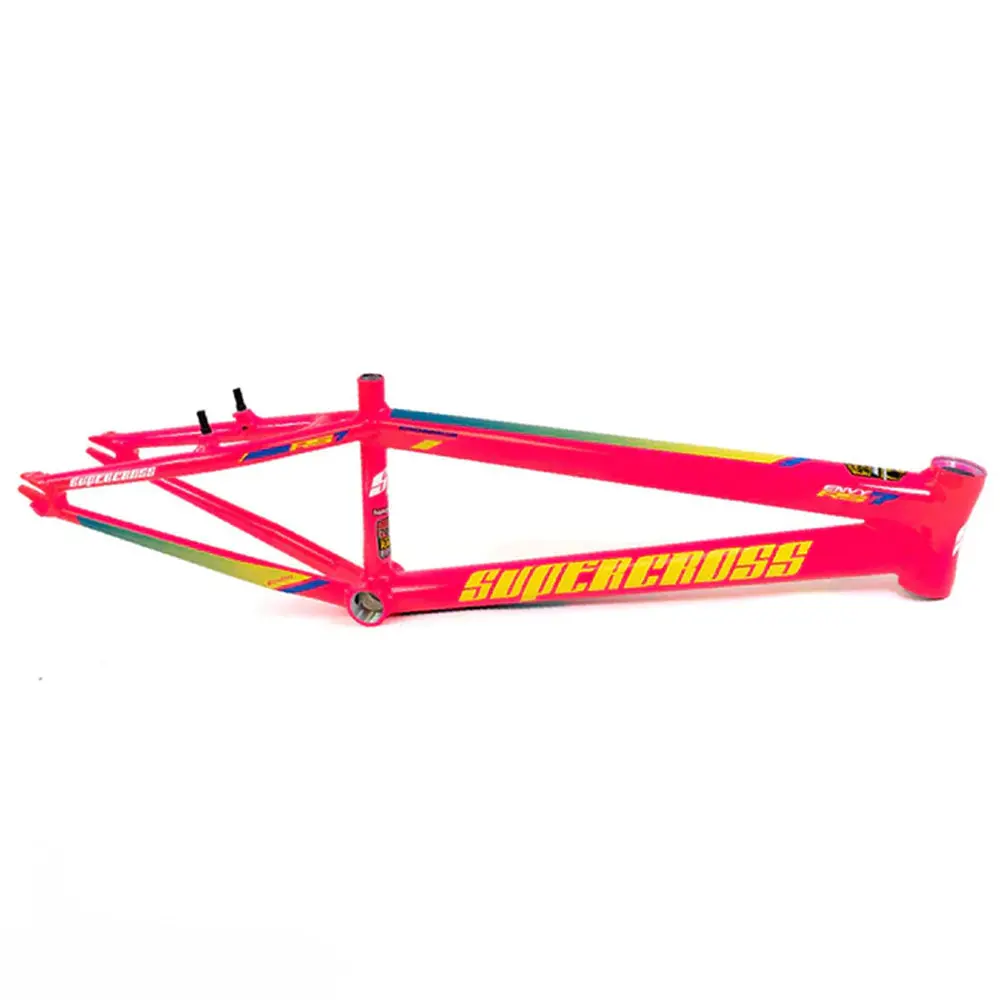

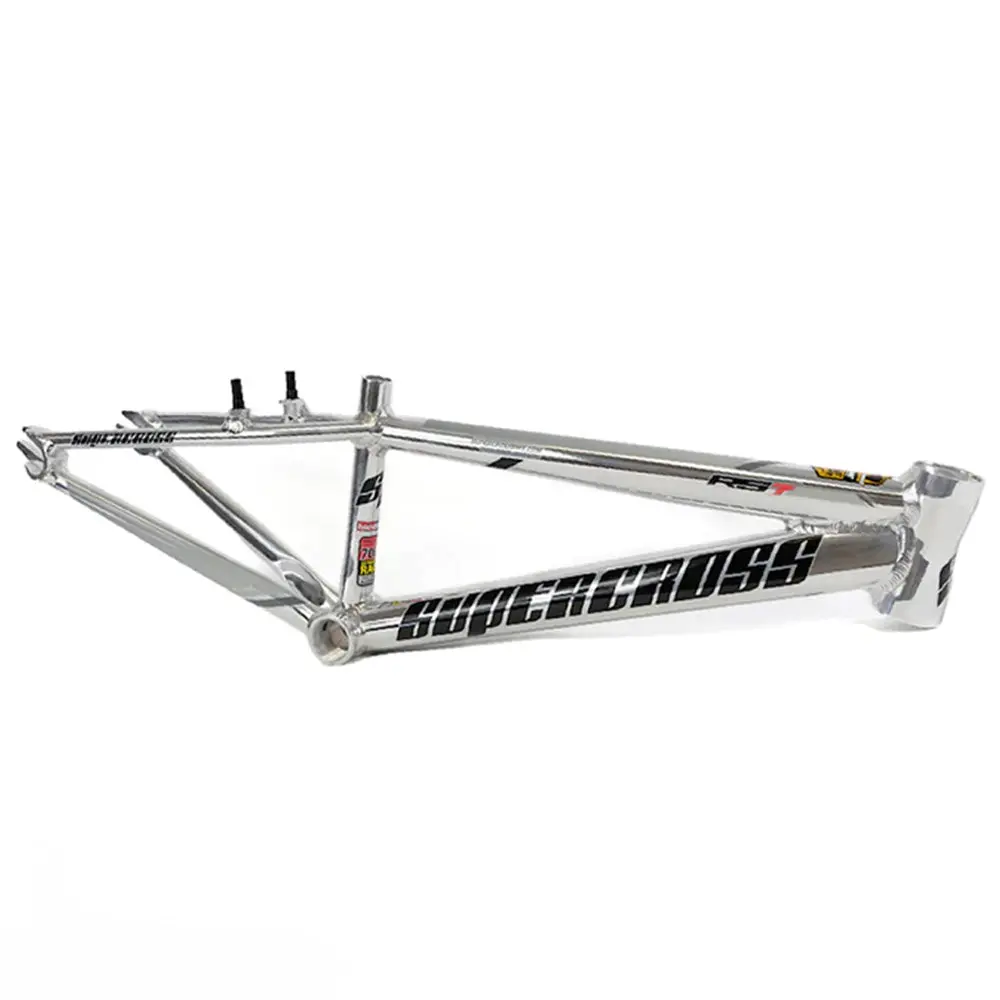

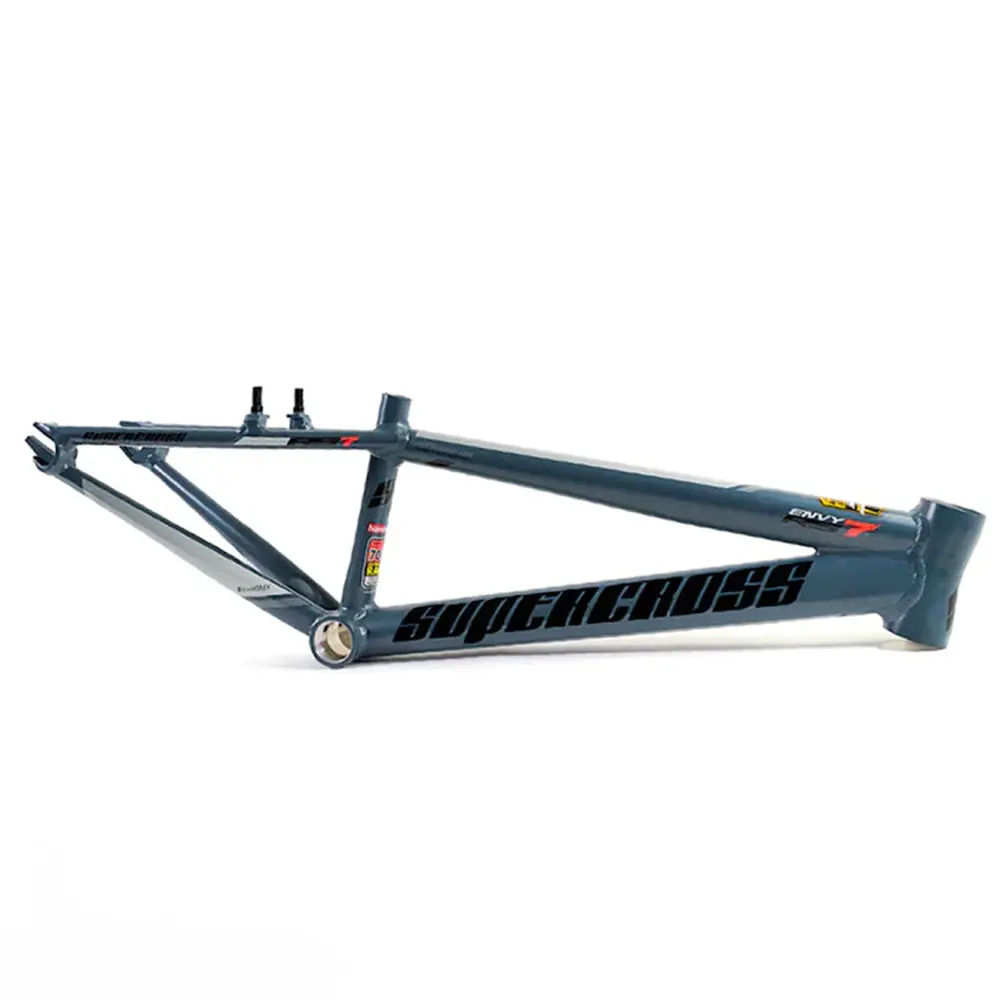

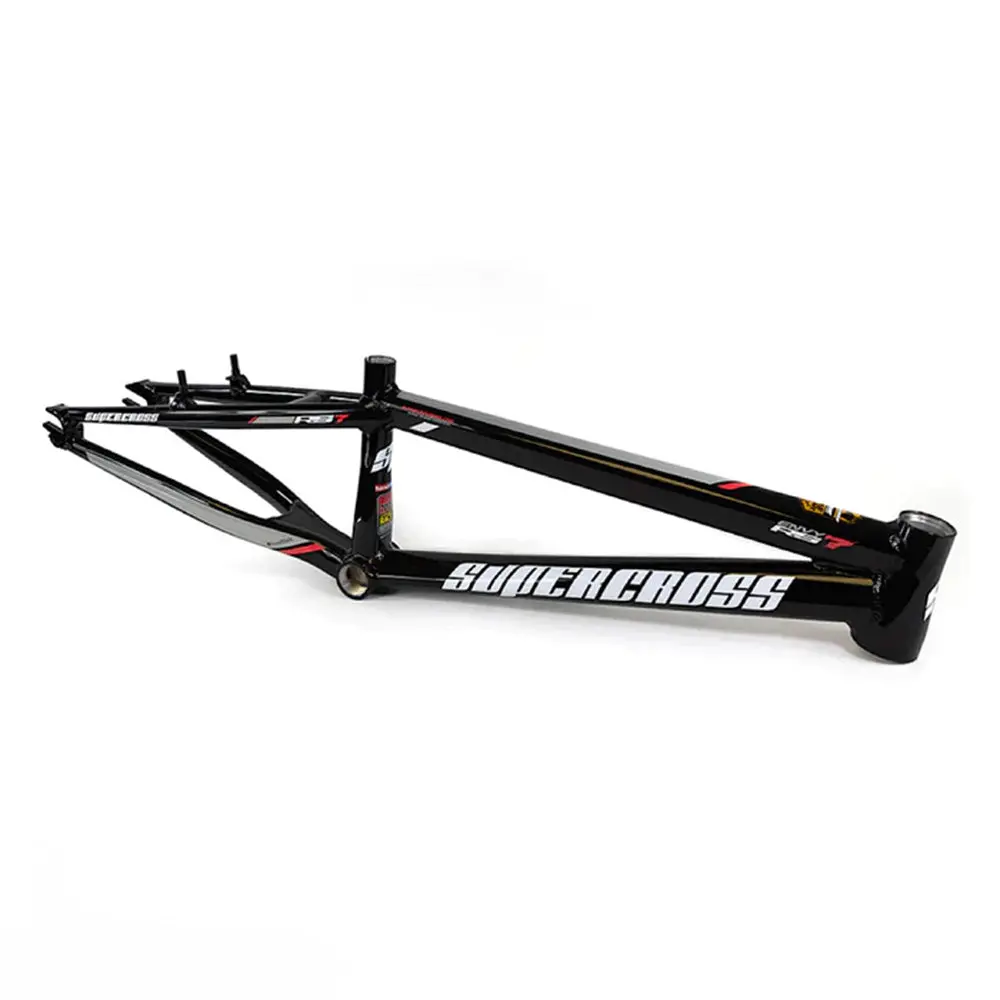

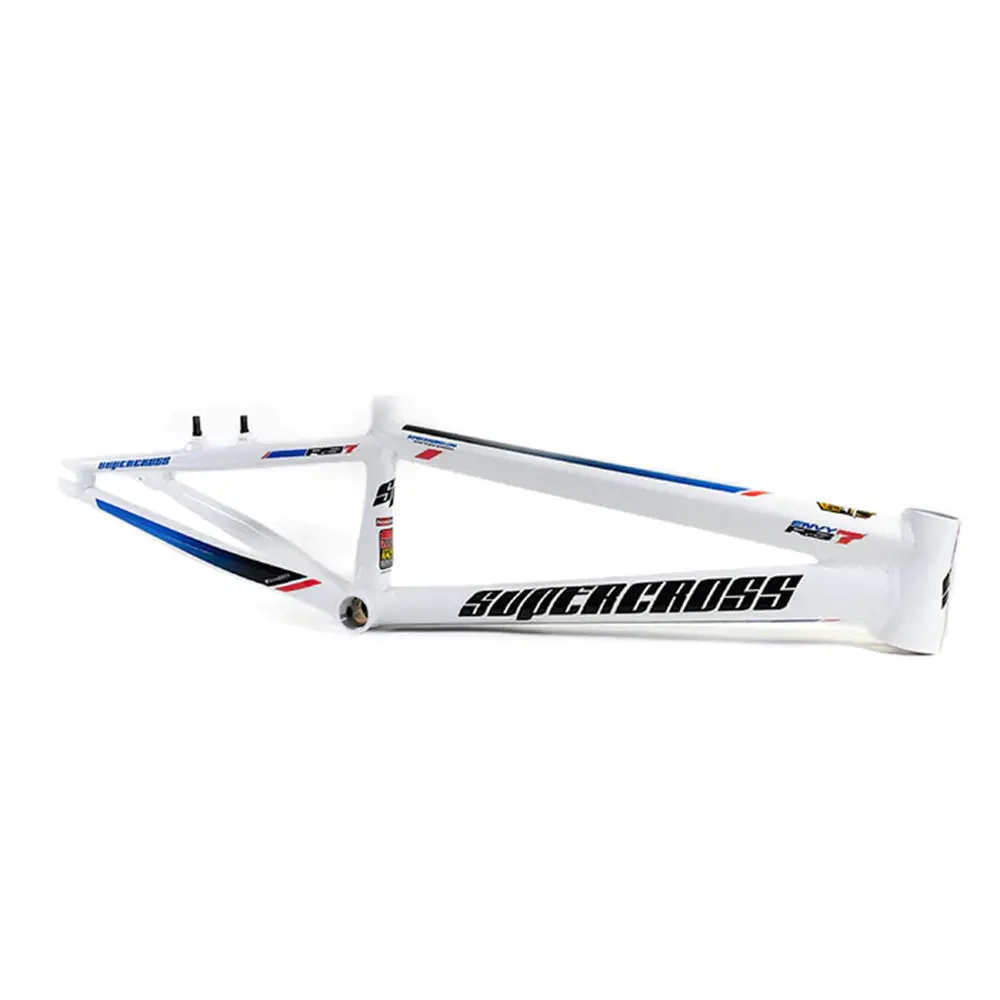

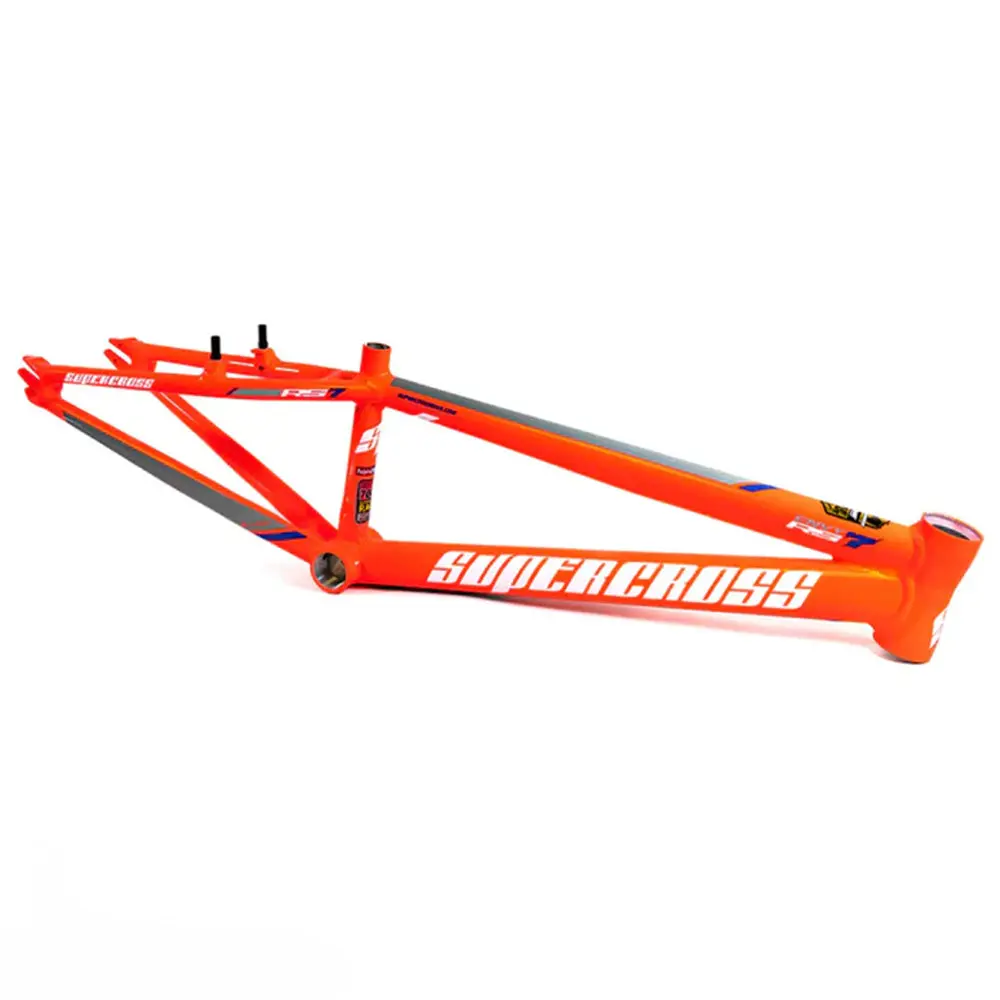

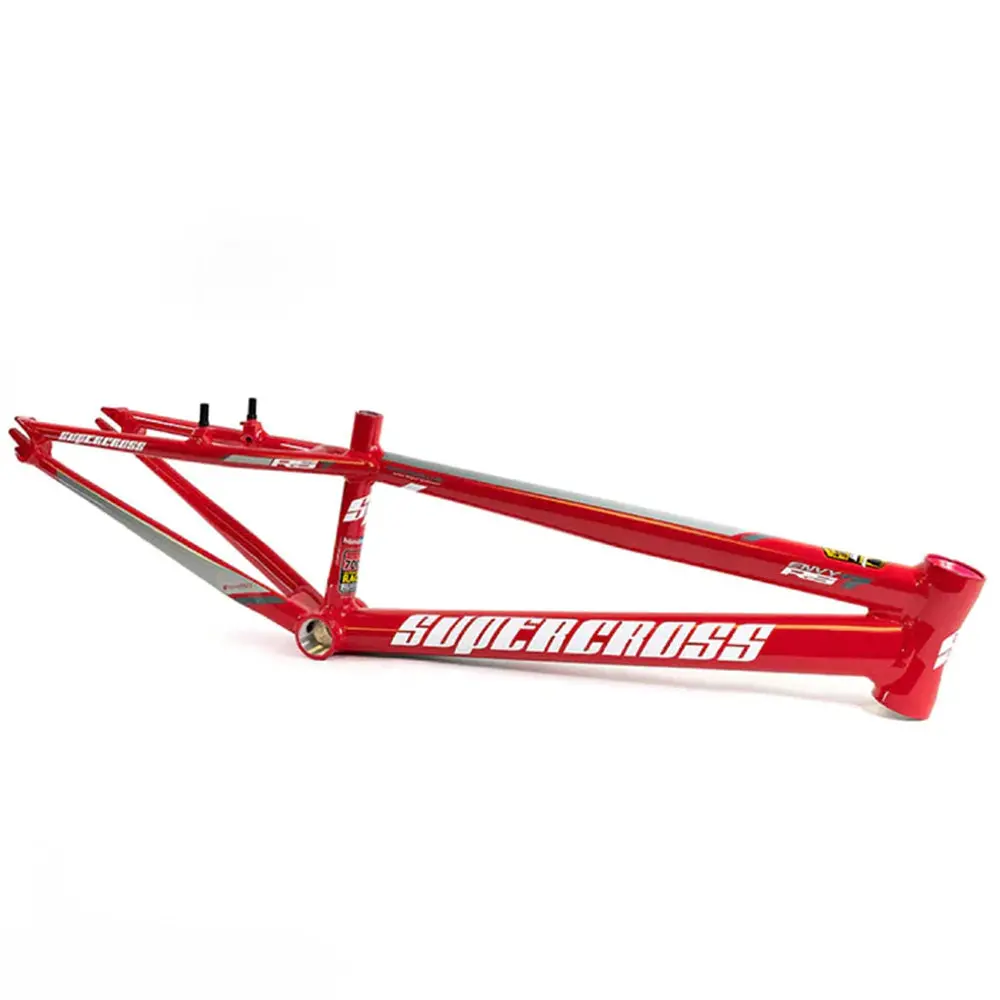

Supercross Envy V2 RS7 24-Inch BMX Race Frame

Category: Brand:

Description

The ENVY RS7 is Supercross BMX’s prized Aluminum frame line. Featuring high-quality 7000 series aluminum, they say it’s the closest launch performance you can get to Carbon on an aluminum frame. The RS7 is a quality package for any racer looking to take their racing to the next level with unique colorways for any taste.

SUPERCROSS BMX ENVY RS7 RACE FRAME GEOMETRY CHART
Size A B C D E Post Size Fork
 Wheel Size Weight
Micro 16.75″ 12.0″ 72º 70º 10.3″ 22.2mm 1 Threadless 20 X 1 2lbs
Mini 17.5″ 12.25″ 72º 70º 10.7″ 22.2mm 1 Threadless 20 X 1 1/8 2lbs 1oz
Jr. 18.5″ 12.5″ 73.5º 70º 10.7″ 22.2mm 1 Threadless 20 X 1 1/8 2lbs 2oz
Jr. Plus 19″ 12.5″ 73.5º 70º 10.7″ 22.2mm 1 Threadless 20 X 1 1/8 2lbs3oz
Expert 19.5″ 13.75″ 74º 70º 11.2″ 22.2mm 1 Threadless 20 X 1 3/8 2lbs5oz
Expert XL 20″ 14.0″ 74º 70º 11.2″ 22.2mm 1 Threadless 20 X 1 3/8 2lbs 6.5oz
Expert XXL 21″ 14.0″ 74.5º 70º 11.2″ 22.2mm 1 Threadless 20 X 1 3/8 2lbs 8.8oz
Pro 20.5″ 15.0″ 74.5º 70º 11.6″ 27.2mm 1 1/8″ – 1.5″ Tapered 20 X 1.75 2lbs 12oz
Pro Plus 20.75″ 15.0″ 74.5º 70º 11.6″ 27.2mm 1 1/8″ – 1.5″ Tapered 20 X 1.75 2lbs 13oz
Pro XL 21.25″ 15.2″ 74.5º 70º 11.6″ 27.2mm 1 1/8″ – 1.5″ Tapered 20 X 1.75 2lbs 14.8oz
Pro XXL 21.75″ 15.2″ 74.5º 70º 11.6″ 27.2mm 1 1/8″ – 1.5″ Tapered 20 X 1.75 2lbs 15.8oz
Pro XXXL 22.25″ 15.2″ 74.5º 70º 11.6″ 27.2mm 1 1/8″ – 1.5″ Tapered 20 X 1.75 3lbs 4oz
Junior 24″ 19.25″ 14.2″ 73.5º 69.3º 11.2″ 22.2mm 1 Threadless 24 X 1 1/8 2lbs 2oz
Expert 24″ 20.5″ 15″ 73.5º 69.3º 11.2″ 22.2mm 1 Threadless 24 X 1 3/8 2lbs 8.8oz
Expert XL 24″ 21″ 14.75″ 73.5º 70º 11.6″ 22.2mm 1 Threadless 24 X 1 3/8 2lbs 10oz
Pro 24″ 21.5″ 15.3″ 73.5º 70º 11.6″ 27.2mm 1 1/8″ – 1.5″ Tapered 24 X 1.75 2lbs 15.8oz
Pro XL 24″ 22″ 15.3″ 73.5º 70º 11.6″ 27.2mm 1 1/8″ – 1.5″ Tapered 24 X 1.75 3lbs 1.2oz
Pro XXL 24″ 22.5″ 15.3″ 73.5º 70º 11.6″ 27.2mm 1 1/8″ – 1.5″ Tapered 24 X 1.75
* Specifications will vary depending upon your choice of Fork, Tire and Rim selection. Measurements are based off of a Supercross Fork and equal size (ie. 20X1.75 front and rear) tire combination. Specifications subject to change without notice.
All weights are measured on a UPS Calibrated Scale. Weights will vary depending upon the amount of powdercoat and the amount of filler rod used on a particular frame. Polished Frames and Anodized Frames are the lightest as there is no paint. Weights and Specifications are subject to change without notice.
Please note: Pro Sized and Larger Frames have the LUG behind the BB shell for the increased Stiffness. Smaller Frames, Expert XXL and down, have a tube brace, but the Chain Stays are welded directly to the BB shell without the boxing.

Explore more from our collection.

Additional information

SIZE

MINI, JUNIOR, EXPERT, EXPERT XL, PRO, PRO XL, PRO XXL
COLOR

GLOSS BLACK, CYAN YELLOW, POLISHED, MATTE BLUE, NEON PINK, WHITE, MATTE GREY, METALLIC RED, HI VIS YELLOW, MYSTIC RAINBOW, MATTE GREEN, METALLIC TEAL, NEON ORANGE, PURPLE, DESERT STORM
